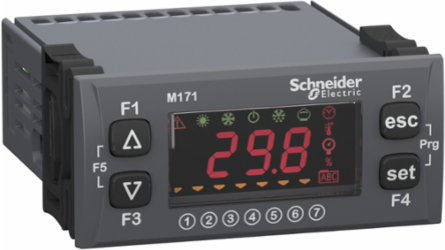

Schneider Electric TM171OF22R Modicon M171 Controller, 22 I/O, 0.385 kg, DIN Rail Mount, IP20
- MPN: TM171OF22R
- PPN: SCH-TM171OF22R
CAD
$241.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon Controller from Schneider Electric is engineered for automation and control applications, showcasing a versatile design that accommodates 22 I/O points. Its compact depth of 61.6 mm makes it an ideal choice for space-constrained environments while delivering programmable functionalities to enhance system efficiency. This device not only supports diverse industrial needs but also integrates seamlessly with a variety of PLC, HMI, and data acquisition systems, ensuring robust performance and reliable operation in complex automation tasks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy, Sweden
Depth61.6 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Local Signalling
- 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable
- Input/Output Number
- 5 analog output6 digital input, 5 analog input, 6 digital output
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Display Type
- Without Display
- Number Of Port
- 1 LAN expansion bus
- Power Consumption In W
- 18 W 24...48 V AC/DC
- Product Or Component Type
- controller
- Range Of Product
- Modicon M171/M172
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Height Nominal
- 110 mm
- [Us] Rated Supply Voltage
- 12...24 V +/- 20 % AC/DC24 V +/- 20 % DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Certificate AgencyCE, cURus, CSA, EAC
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Contacts Usagevolt-free contacts
Mounting SupportDIN rail
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific ApplicationHVAC and pumping solution
Realtime Clockbuilt-in clock at -10-55 °C
Sensor Power Supply12-12 V DC 85 mA5-5 V DC 20 mA
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal140 mm
Number Of Inputs/Outputs22
Package Weight(Lbs)226.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C UL 60730-1, -10-55 °C UL 60730-1-10-55 °C UL 60730-1, -10-55 °C UL 60730-1
- Directives
- 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Relative Humidity10-90 % non-condensing
General Attributes
- Product Or Component Type
- controller
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Analogue Output Number
- 3 voltage 0...10 V, 2 PWM/PPM 20 kHz, 12 V, 35 mA
- Discrete Output Number
- 1 open collector3 relay outputs SPST with same common2 relay outputs SPST with independent common
Discrete Output Current2 A relay
Input Attributes
- Analogue Input Type
- voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V
- Discrete Input Logic
- sink or source (positive/negative)
Analogue Input Number2 configurable3 analog input NTC
Discrete Input Number6
