Schneider Electric TM171OD14R Modicon M171 Controller with 14 I/O, 100-240V AC, Green Premium
- MPN: TM171OD14R
- PPN: SCH-TM171OD14R
CAD
$276.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

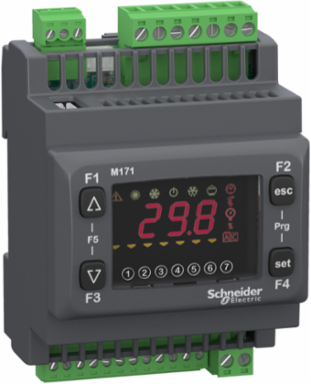

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 2 digital inputs, 5 configurable analog inputs, 4 digital outputs, 5 analog outputs, and a display. This programmable controller embeds 1 communication port for LAN expansion bus. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. DIs are open collectors, AIs are NTC, PT1000, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V. DOs are SPST or SPDT (2 A, 230Vac) with the same common, AOs are open collectors for 12V PWM/PPM, or 0-10V, 4-20mA. It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.190kg. This controller is designed for HVAC and pumping applications. It is certified by CE, CURus, CSA and EAC. It is compatible with screw terminal blocks, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Italy, Sweden |
|---|
| Depth | 61.6 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Input/Output Number | 5 analog output4 digital output, 5 analog input |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5 kg CO2 eq., 0.5216254315182522 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 10.41812723959728 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1710004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Number Of Port | 1 LAN expansion bus |
| Product Or Component Type | controller |
| Range Of Product | Modicon M171/M172 |
| Sensor Power Supply | 12-12 V DC 85 mA |
| Sustainable Packaging | Yes |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 350.4 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Width Nominal | 70.2 mm |
| Number Of Inputs/Outputs | 14 |
| Package Weight(Lbs) | 288.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.1115051918043258, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.004696289541949586, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 166 kg CO2 eq., 165.7967990445545 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Contacts Usage | volt-free contacts |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC and pumping solution |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 177 kg CO2 eq. |
| Upgradeability | Yes |
| Pep Code | ENVPEP1710004EN |
| Pep Verification Date | 2025-11-25 |
| Psr Version | No PSR |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Italy, IT |
| Energy Model - Use [B6] | Electricity origin |
| Height Nominal | 87 mm |
| [Us] Rated Supply Voltage | 100...240 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 176.8527531970163 |
| Environmental Disclosure | ENVPEP1710004EN |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP1710004EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1710004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-25 |
| Psr Version | No PSR |
General Attributes
| Product Or Component Type | controller |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Analogue Output Number | 2 voltage 0...10 V2 PWM/PPM 20 kHz, 12 V, 35 mA, 1 current 0...20 mA/4...20 mA |
|---|---|
| Discrete Output Number | 3 relay outputs SPST with same common1 relay outputs SPDT with same common |
| Discrete Output Current | 2 A relay |
|---|
Input Attributes
| Analogue Input Type | voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °CPt 1000 temperature probe - 50...400 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Analogue Input Number | 2 configurable3 analog input NTC |
|---|---|
| Discrete Input Number | 2 |
