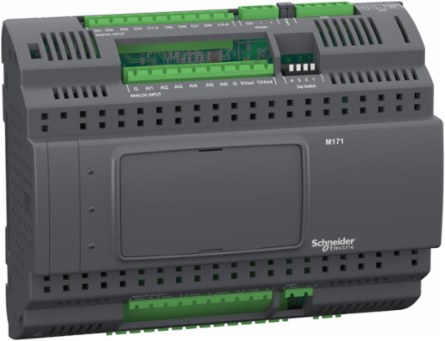

Schneider Electric TM171PBM27R Modicon M171 Performance Controller 27 IO, 140 mm Width, 18 W Power, IP20
- MPN: TM171PBM27R
- PPN: SCH-TM171PBM27R
CAD
$572.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 140mm (width) x 61.6mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| Depth | 61.6 mm |
|---|
Important Information Attributes
| Local Signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.2118598644282191, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.004797190078512364, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 746 kg CO2 eq., 746.0855957004956 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Display Type | LCD display - 128 x 64 pixels |
| Number Of Port | 1 CAN port - screw terminal block1 USB type A - USB type A female1 USB type mini B - USB device port Mini-B1 RS485 - screw terminal block Modbus serial link) |
| Power Consumption In W | 18 W 24...48 V AC/DC |
| Product Or Component Type | programmable controllers |
| Range Of Product | Modicon M171/M172 |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 792 kg CO2 eq. |
| Upgradeability | Yes |
| Pep Code | ENVPEP1710005EN |
| Pep Verification Date | 2025-12-12 |
| Psr Version | No PSR |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Italy, IT |
| Energy Model - Use [B6] | Electricity origin |
| Height Nominal | 110 mm |
| [Us] Rated Supply Voltage | 24 V +/- 20 % AC/DC48 V +/- 20 % DC |
| Number Of Inputs/Outputs | 27 |
| Package Weight(Lbs) | 496.0 g |
| Warranty (In Months) | 18 |
| Certificate Agency | cURus, CSA, EAC, CE |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.350286299571271 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 44 kg CO2 eq., 44.2853833873189 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1710005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Mounting Support | DIN rail |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC and pumping solution |
| Realtime Clock | built-in clock at -10-55 °C |
| Sensor Power Supply | 5-5 V DC 50 mA12-12 V DC 150 mA |
| Sustainable Packaging | No |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control simple and compact machines for HVAC/R applications, e.g. fans and water pumps through TRIAC high voltage output, with a power of 18W for a 100% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1576.8 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Width Nominal | 140 mm |
| Input/Output Number | 6 analog input5 analog output8 digital input7 digital output1 high-speed counter |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C UL 60730-1, -10-55 °C UL 60730-1-10-55 °C UL 60730-1, -10-55 °C UL 60730-1 |
|---|---|
| Directives | 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1710005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2025-12-12 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 791.9379224418925 |
| Environmental Disclosure | ENVPEP1710005EN |
| Ip Degree Of Protection | IP20 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1710005EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | programmable controllers |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Analogue Output Number | 3 voltage/current 4...20 mA or 0...10 V, 2 open collector 1 kHz, 12 V, 35 mA |
|---|---|
| Discrete Output Current | 8 A relay SPDT5 A relay SPST |
| Discrete Output Number | 3 relay outputs SPST with same common, 2 relay outputs SPST with same common2 relay outputs SPDT with independent common |
|---|
Input Attributes
| Analogue Input Type | voltage 0...5 V ratiometric)current 4...20 mAimpedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C 0.1 °C extended), voltage 0...10 VPt 1000 temperature probe - 200...800 °C 0.1 °C, NTC temperature probe - 40...150 °C 0.1 °C |
|---|---|
| Discrete Input Current | 2.5 mA |
| Discrete Input Number | 8 |
| Input Impedance | 20 kOhm |
| Analogue Input Number | 2 analog input NTC4 configurable |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Discrete Input Voltage | 24 V AC/DC48 V DC |
