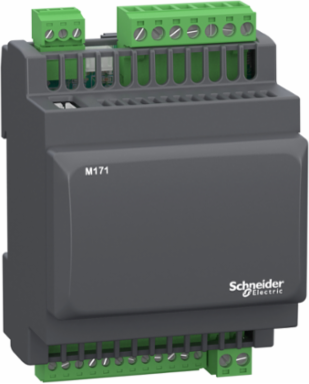

Schneider Electric TM171OBM14R Modicon M171/M172/M173 Controller, 14 I/O, 100-240V AC
- MPN: TM171OBM14R
- PPN: SCH-TM171OBM14R
CAD
$255.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Modicon Controller from Schneider Electric represents a significant advancement in automation and control technology. Equipped with 14 input/output channels, this programmable unit operates efficiently within a voltage range of 100-240V AC, making it versatile for a variety of industrial applications. Ideal for integration in complex systems, this controller enhances data acquisition and operational performance, ensuring that your automation needs are met with precision and reliability. Whether for industrial automation or complex PLC expansion, its robust design and capabilities help streamline processes and improve efficiency.
Documentation & Downloads
Specifications
Additional
- Voltage
- 100...240 V AC
- Number Of Inputs/Outputs
- 14
- Discrete Output Number
- 1 SPDT relay, 3 SPST relays
- Analogue Output Number
- 2 voltage 0...10 V, 2 PWM/PPM 20 kHz 12 V 35 mA, 1 current 0...20 mA/4...20 mA
- Discrete Input Logic
- Sink or source (positive/negative)
- Analogue Input Type
- NTC temperature probe (-50...100 °C, 0.1 °C), Pt 1000 temperature probe (-50...400 °C, 0.1 °C), Current 0...20 mA/4...20 mA, Voltage 0...1 V, 0...10 V ratiometric, 0...5 V
- Width
- 70.2 mm (2.76 in)
- Depth
- 61.6 mm (2.43 in)
- Product Or Component Type
- Controller
- Range Of Product
- Modicon M171/M172
- Upgradeability
- Upgradeable through digital modules and upgraded components
- Circularity Profile
- ENVEOLI1710004EN
- Reach Regulation
- Contains SVHC above threshold
Discrete Output Current2 A relay
Discrete Input Number2
Analogue Input Number2 configurable, 3 NTC analog inputs
Number Of Ports1 LAN expansion bus, 1 RS485 Modbus serial link
Contacts UsageVolt-free contacts
Sensor Power Supply12 V DC 85 mA
Height87 mm (3.43 in)
Net Weight0.19 kg (0.42 lb)
VariantProgrammable
Product Specific ApplicationHVAC and pumping solution
ComplianceRoHS, Mercury Free, China RoHS Declaration, EU RoHS Pro-active compliance
Environmental DisclosureENVPEP1710004EN
Mercury FreeYes
