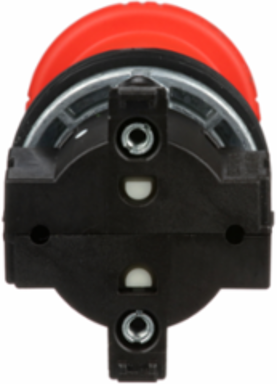

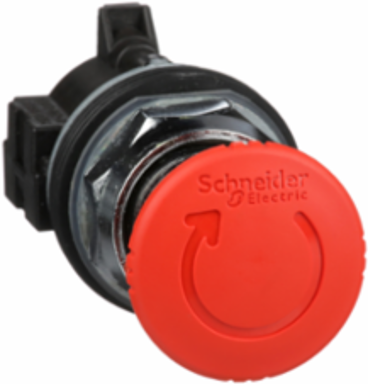

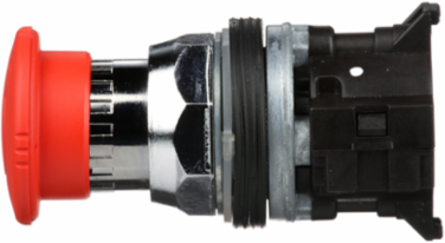

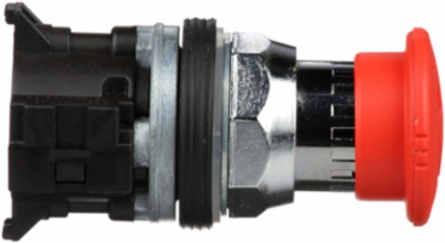

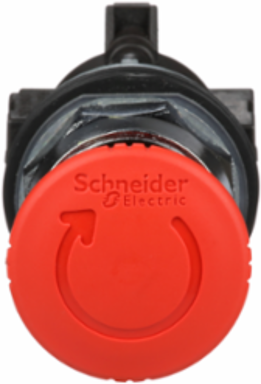

Schneider Electric 9001KR16H6 Emergency Stop Push-Button, Red Mushroom Ø 40 mm, 2 Positions, IP66
- MPN: 9001KR16H6
- UPC: 785901816577
- PPN: SCH-9001KR16H6
CAD
$201.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This emergency stop push-button from Schneider Electric is designed for optimal safety and control in industrial environments. Featuring a robust red mushroom design with a diameter of 40 mm, it operates on two positions and is built to withstand challenging conditions, boasting an IP66 rating for dust and water resistance. Ideal for automation and control applications, this push-button ensures quick and reliable activation in emergency situations, making it an essential component for any machinery or equipment requiring immediate shutdown capabilities.
Documentation & Downloads
Specifications
Additional
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Rated Operational Current
- 3 A 240 V AC-15, A600-Q600 NEMA || 0.55 A 125 V DC-13, A600-Q600 NEMA
- Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Mechanical Durability
- 5,000,000 cycles
- Storage Temperature Range
- -40 to 70 B0C (-40 to 158 B0F)
- Shock Resistance
- 50 gn IEC 60068-2-27
- IP Degree of Protection
- IP66 IEC 60529
- Mounting Diameter
- 30 mm
- Overall Height
- 40 mm
- Operator Profile
- red mushroom D8 40 mm, unmarked
- Operator Position Information
- 2 positions
- Contacts Material
- silver alloy contacts
- Tightening Torque
- 0.8 N.m IEC 60947-1
- Head Material
- plastic
- Standards Compliance
- IEC 60204-1, ISO 13850, IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-5, JIS C 4520, JIS C 852, CSA C22.2 No 14, UL 60947-5-5
Rated Short-Circuit Making Capacity12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Rated Insulation Voltage250 V IEC 60947-1
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Operating Temperature Range-25 to 70 B0C (-13 to 158 B0F)
Vibration Resistance7 gn (2-500 Hz) IEC 60068-2-6
Overvoltage CategoryClass II IEC 61140
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 6, 12, 13
Overall Width40 mm
Overall Depth116 mm
Type of Operatorturn to release trigger action
Contacts Type and Composition1 NC (Normally Closed)
Connections - Terminalsscrew clamp terminals, 1 x 0.22 to 2 x 1.5 mmB2 IEC 60947-1
Bezel Materialmetal
Product CertificationsUL 508, NEMA
Country of OriginMexico (MX)
