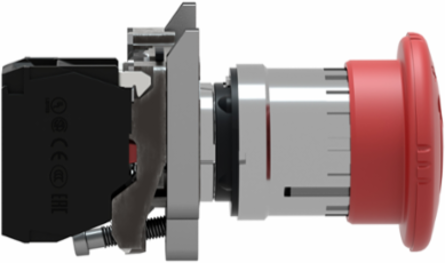

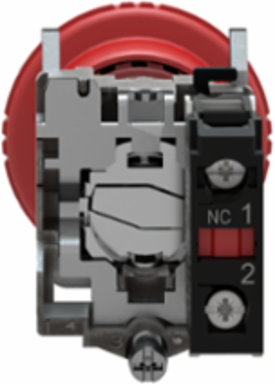

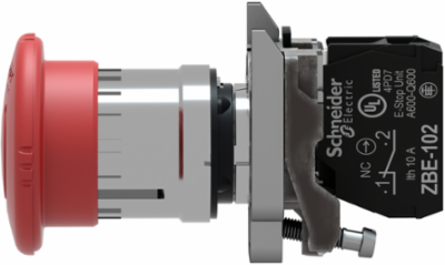

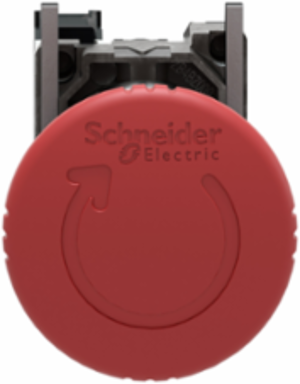

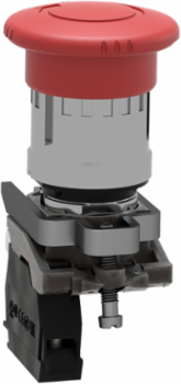

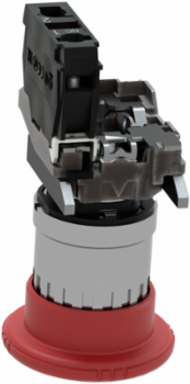

Schneider Electric XB4AB2 Emergency Stop Pushbutton, 22mm, Red Mushroom 40mm, IP66, NEMA 4X
- MPN: XB4AB2
- UPC: 785901553762
- PPN: SCH-XB4AB2
- UNSPSC: 39121326
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

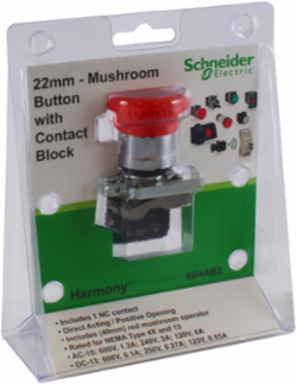

XB4/ZB4 22mm push buttons are for industrial applications. XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar. Operator is a turn to release push button with a 40mm red mushroom button. The operator has one normally closed contact. Contact has UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings. The mushroom button is NEMA 4, 4X and 13 rated. Turn to release mushroom button is 1.85 inches tall, 1.57 inches wide and 3.23 inches deep. The push button assembly weighs 0.26 lbs. This point of purchase product is packaged in a blister pack. Push button is UL Listed and CSA certified "It is ideal for machine builder industry applications such as automotive, textile and wood. It is also suitable for use in public works, building and airport." "This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, IEC 60364-5-53, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-5-1, UL 508 and JIS C8201-1 standards." "It is installed into a Ø 22mm panel cutout." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
Features
- Turn to release reset
- Simplicity and speed installation
- Flexible and robust construction
- Low-load electrical contact and high power
- Shakeproof connection screws
- Wide range of operating temperature from -25°C to 70°C
- Complies with UL listed BV, CSA, DNV, LROS and GL
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 104 mm |
| Weight | 181 g |
|---|
Complementary Attributes
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ui Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Reset | turn to release, turn to release |
| Type Of Operator 3 Type Of Operator | mechanical latching |
| Terminals Description Iso N°1 | (21-22)NC, (21-22)NC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.2289446026 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 1.2829314353 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Bezel Material | chromium plated metal |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NC |
| Device Short Name | XB4 |
| Fixing Collar Material | zamak |
| Mounting Diameter | 22.5 mm |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Type Of Operator | mechanical latching |
| Connections Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Database Version | 2022-01 |
| Height Nominal | 47 mm |
| Cap/Operator Or Lens Colour | red |
| Customs Code | 8536509035 |
| Short Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Certificate Agency | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Carbon Footprint Of The Distribution Phase A4 | 0.0236695611, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0363030605, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0 kg CO2 eq., 0.0017395775 |
| Local Publishable Date | 2026-08-10 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | XB4 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard contacts |
| Electrical Shock Protection Class | class I conforming to IEC 60536 |
| Mechanical Durability | 300000 cycles |
| Operating Travel | 1.5 mm NC changing electrical state)4.3 mm total travel) |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Or Component Type | emergency switching off push-button |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Contacts Composition 6 | 1 NC |
| Data Source | extrapolated product |
| Width Nominal | 40 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Product Repair Index Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Functional Unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 84 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 1.573588237 |
| Environmental Disclosure | ENVPEP2308035EN |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2308035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | emergency switching off push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC002034 |
|---|---|
| ETIM 10 | EC002034 |
| ETIM 9 | EC002034 |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
