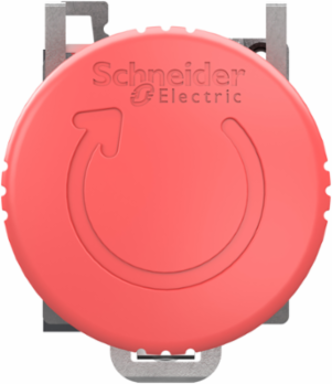

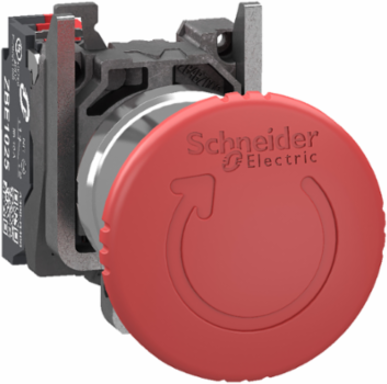

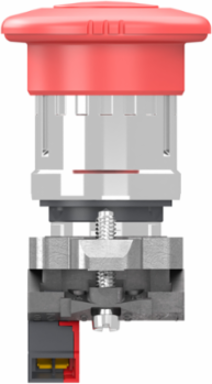

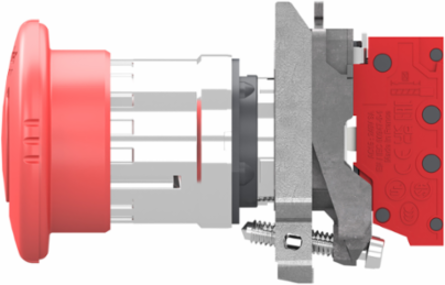

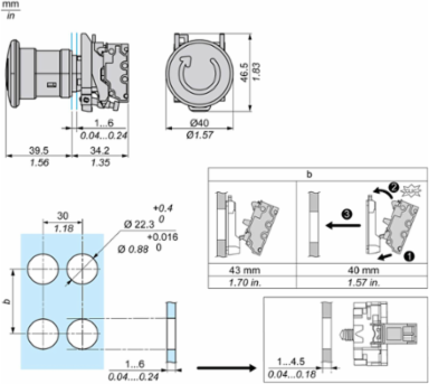

Schneider Electric XB4BS84425 Emergency stop switching off, Harmony XB4, metal, red mushroom 40mm, 22mm, trigger turn to release, 1NC, compact push in
- MPN: XB4BS84425
- PPN: SCH-XB4BS84425
CAD
$51.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4 emergency stop/shutdown 40mm mushroom head red push button operates with a turn to release mechanism. It is also called EMS (Emergency Machine Stop) and EMO (Emergency Off). It features 1 NC contact with slow break operation. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with push-in terminal connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. This product is made from plastic, it weighs 122g. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Depth73.2 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Or Component Type
- emergency switching off push-button, emergency stop push-button
- Certificate Agency
- EAC, IECEE CB Scheme, CCC, UL, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0159988729, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0005366552
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- XB4
- Contacts Material
- silver alloy (Ag/Ni)
- Electrical Shock Protection Class
- class I conforming to IEC 60536
- Fixing Mode
- by fixing collar 1 N.m +/- 0.2 N.m)
- Mechanical Durability
- 300000 cycles
- Operating Force
- 2.25 N
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XB4
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- EIME v5.9.3
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2201004EN
- Pep Verification Date
- 2022-01-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Width Nominal
- 40 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Connections - Terminals
- push-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509035
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27

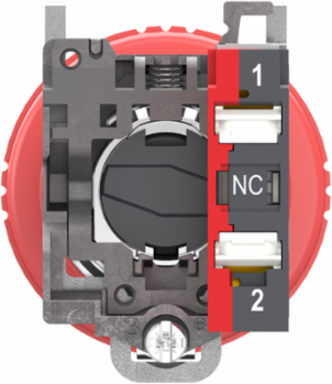

Terminals Description Iso N°1(21-22)NC, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0144055855, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.309492799
Local Data StatusPublishable
Pre Comm Date2024-05-23
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2201004EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2201
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialchromium plated metal
Contact Operationslow-break
Device Short NameXB4
Fixing Collar Materialzamak
Head Typestandard
Mounting Diameter22.5 mm
Operating Travel1.217 mm NC changing electrical state)4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Protective TreatmentTH
Resetturn to release
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Type Of Operatortrigger action and mechanical latching
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEmergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60947-1 and EN/IEC 60204 -1 during 20 years.
Energy Model - Manufacturing [A1-a3]Energy model used: Pisek, Czech Republic
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Height Nominal47 mm
[Ie] Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-13 A 240 V, AC-15, A300 IEC 60947-5-10.55 A 125 V, DC-13, Q300 IEC 60947-5-10.27 A 250 V, DC-13, Q300 IEC 60947-5-1
[Ui] Rated Insulation Voltage300 V 3)IEC 60947-1
Cap/Operator Or Lens Colourred
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)118.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.3404339126
- Environmental Disclosure
- ENVPEP2201004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2201004EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2201004EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2022-01-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- emergency switching off push-button, emergency stop push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC002034
ETIM 9EC002034
Overview Attributes
- Device Presentation
