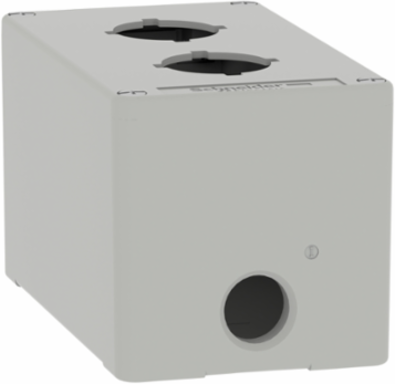

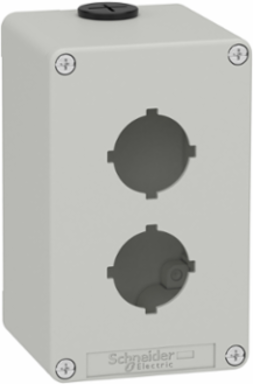

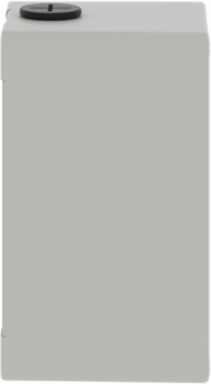

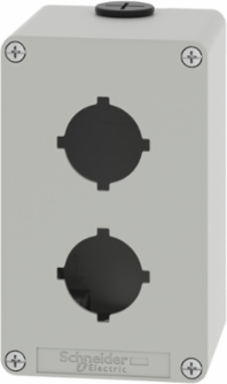

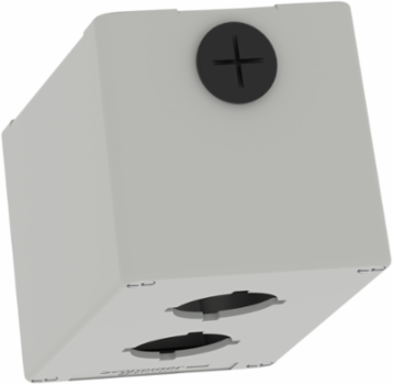

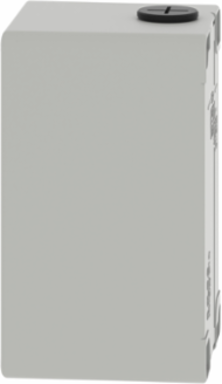

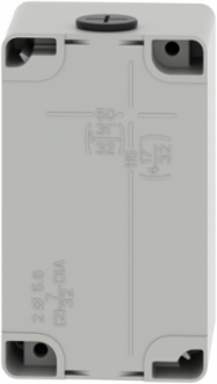

Schneider Electric XAPD2602 Harmony XAP Empty Control Station, 80x130mm, Zinc Alloy, 2 Cut-Outs 30mm

MPN: XAPD2602
PPN: SCH-XAPD2602
UNSPSC: 39121565

$148.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony XAP Empty Control Station, 80x130mm, Zinc Alloy, 2 Cut-Outs 30mm

Features

Empty stations for customer assembly with 1 to 10 holes depending on the model
Operating simplicity, flexibility, and robustness
Full compatibility with Harmony XB4 or Harmony XB5 pushbutton ranges
Metal offer for use in a wide range of environments
Pre-drilled or undrilled zinc or aluminium alloy enclosures
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Morocco

Weight	815 g

Physical Attributes

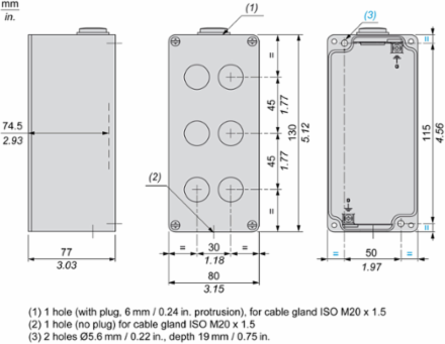

Cad Overall Depth	77 mm
Cad Overall Width	80 mm
Usable Depth	74.5 mm

Cad Overall Height	130 mm
Product Front Plate Size	80 x 130 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL, cULus, EAC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.0732551323
Carbon Footprint Of The Manufacturing Phase A1 To A3	6 kg CO2 eq., 5.8846737213
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Control Station Type	metal
Electrical Shock Protection Class	class I conforming to IEC 61140
Number Of Horizontal Rows	2
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	die-cast empty control station
Range Of Product	Harmony XAP
Returnability	Yes
Software Version	EIME v5.9.1
Thread Type	M20 x 1.5
Color Of Base Of Enclosure	grey RAL 7035)
Database Version	2016-11
Nbr. Of Units In Pkg.	1
Cut Out Dimensions	Ø 30 mm
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	0.1051536861, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0024725979, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2114
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Cable Entry	2 x cable gland ISO
Device Short Name	XAPD
Material	die cast zinc
Number Of Vertical Rows	1
Product Destination	for Ø 30 mm control and signalling units
Protective Treatment	TC
Resistance To Chemical Agents	special treatment can be obtained on request
Sale Per Indivisible Quantity	1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	6 kg CO2 eq.
Color Of Cover	grey RAL 7035)
Data Source	extrapolated product
Customs Code	8538100000
Number Of Cut Out	2 cut-outs
Functional Unit Description	The main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard.
Functional Unit Unit	Unit

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP65 EN/IEC 60529 and EN/IEC 60947-5-1, IP66 EN/IEC 60529 and EN/IEC 60947-5-1, IP69 EN/IEC 60529 and EN/IEC 60947-5-1
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2309042EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2309042EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	6.0655551376
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
