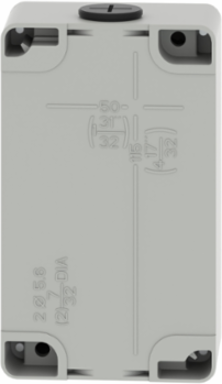

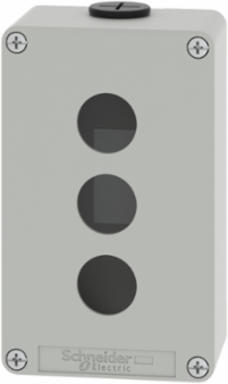

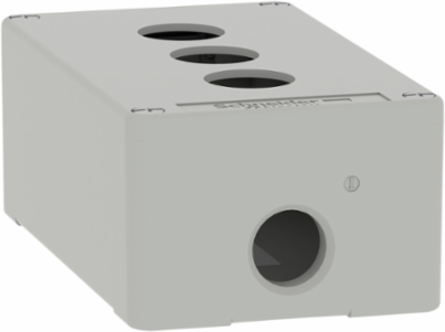

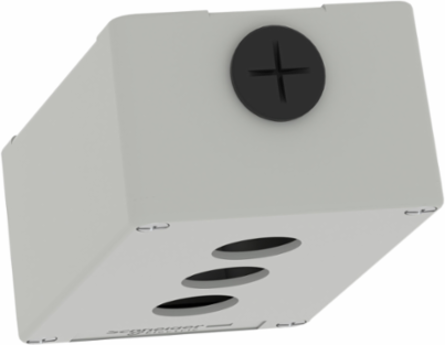

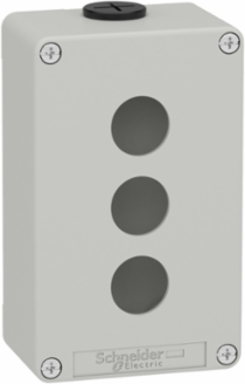

Schneider Electric XAPD2203 Die Cast Empty Control Station, 80x130mm, M20, 3 Cut-Outs, Zinc Alloy
- MPN: XAPD2203
- PPN: SCH-XAPD2203
CAD
$120.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD2203 is an empty enclosure with grey color (RAL7035). This version with 3 holes hole position allows combination of XB4/XB5 functions in a small volume. The size remains compact. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M20 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 80mm (width) x 130mm (height) x 51.5mm (depth) and it weighs 0.605kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE, UL, cULus and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Morocco, United States
Physical Attributes

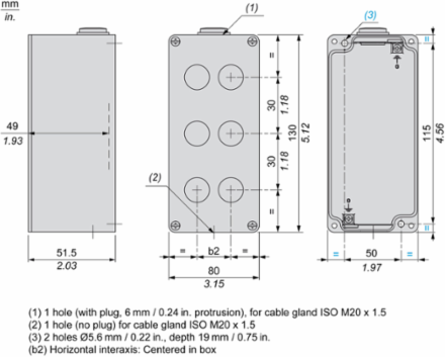

- Cad Overall Depth
- 51.5 mm
- Cad Overall Width
- 80 mm
- Usable Depth
- 49 mm
- Color Of Cover
- grey RAL 7035)
Cad Overall Height130 mm
Product Front Plate Size80 x 130 mm
Color Of Base Of Enclosuregrey RAL 7035)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, cULus, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0548289947
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.4044797178
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Station Type
- metal
- Electrical Shock Protection Class
- class I conforming to IEC 61140
- Number Of Horizontal Rows
- 3
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- die-cast empty control station
- Range Of Product
- Harmony XAP
- Returnability
- Yes
- Software Version
- EIME v5.9.1
- Thread Type
- M20 x 1.5
- Color Of Base Of Enclosure
- grey RAL 7035)
- Pep Code
- ENVPEP2309042EN
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Cut-out Dimensions
- Ø 22 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 7907006000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0787039859, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0018506561, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2114
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Cable Entry2 x cable gland ISO
Device Short NameXAPD
Materialdie cast zinc
Number Of Vertical Rows1
Product Destinationfor Ø 22 mm control and signalling units
Protective TreatmentTC
Resistance To Chemical Agentsspecial treatment can be obtained on request
Sale Per Indivisible Quantity1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint5 kg CO2 eq.
Color Of Covergrey RAL 7035)
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Recyclability Potential In %5
Number Of Cut-out3 cut-outs
Package Weight(Lbs)713.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP65 EN/IEC 60529 and EN/IEC 60947-5-1, IP66 EN/IEC 60529 and EN/IEC 60947-5-1, IP69 EN/IEC 60529 and EN/IEC 60947-5-1
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2309042EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2309042EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint4.5398633545
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- die-cast empty control station
Range Of ProductHarmony XAP
