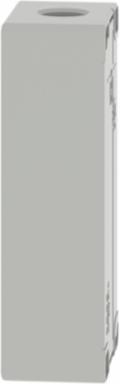

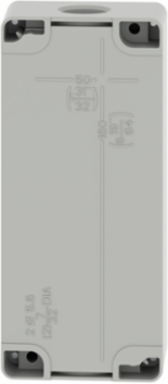

Schneider Electric XAPG39203 Harmony XAP Die Cast Control Station, 3 Cut-Outs, IP65, 175x80x51.5 mm
Schneider Electric XAPG39203 Harmony XAP Die Cast Control Station, 3 Cut-Outs, IP65, 175x80x51.5 mm
- MPN: XAPG39203
- PPN: SCH-XAPG39203
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$142.14/ EA
Description

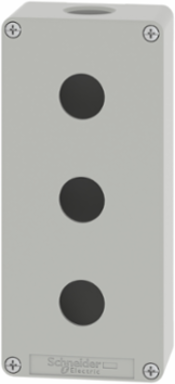

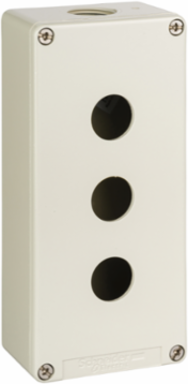

This is part of the range Harmony XAP, XB2 SL metal enclosures for Harmony XB4. This Harmony XAPG is a die-cast empty control station. It has 3 cut-outs, 3 vertical openings, diameter 22mm for 3 functions. Designed for industry, it offers operating simplicity, flexibility and robustness. Its protection index is IP65. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a zinc alloy grey (RAL 7032) enclosure. Its dimensions are 175mm height, 80mm wide, 51.5mm deep. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 range of control and signaling units.
Specifications
Complementary
- Number Of Horizontal Rows
- 3
- Cable Entry
- cable gland || 1 x cable gland
- Cad Overall Height
- 175 mm
- Cut-Out Dimensions
- Ø 22 mm
- Cad Overall Width
- 80 mm
Number Of Vertical Rows1
Net Weight0.870 kg
Thread Type3/4 NPT
Compatibility CodeXAPG
Cad Overall Depth51.5 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2111017EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Ik Degree Of Protection
- IK07 IEC 62262
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
Ambient Air Temperature For Operation-25-70 °C
Electrical Shock Protection Classclass I IEC 60536 || class I NF C 20-030
Specifications
- Product Destination
- for Ø 22 mm control and signalling units
- Colour Of Base Of Enclosure
- grey RAL 7032)
- Material
- die cast zinc
- Control Station Type
- metal
- Number Of Cut-Out
- 3 cut-outs
- Resistance To Chemical Agents
- special treatment can be obtained on request
Range Of ProductHarmony XAP
Product Or Component Typedie-cast empty control station
Ip Degree Of ProtectionIP65 IEC 60529
Colour Of Covergrey RAL 7032)
Sale Per Indivisible Quantity1
Device Short NameXAPG
