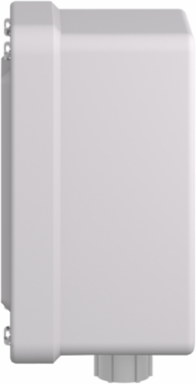

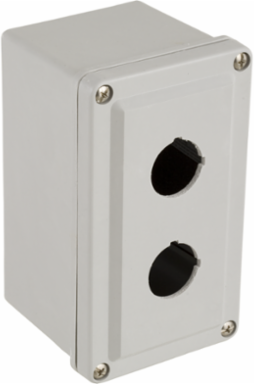

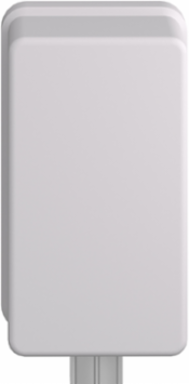

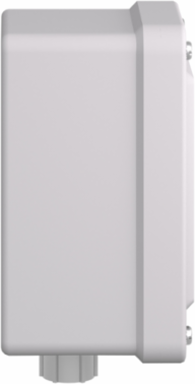

Square D 9001SKY2 Harmony Empty Enclosure Control Station, 2 Cut-Outs, NEMA 1/12/3/4/4X
- MPN: 9001SKY2
- UPC: 785901154082
- PPN: SCH-9001SKY2
CAD
$239.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises a plastic enclosure with 2 vertical openings diameter 30mm. It is supplied with 1 entry tapped for 3/4'' knockout. This robust control station complies with the requirements of NEMA 1/13/3/4/4X ratings. It weighs 690g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- This empty control station carries comprehensive NEMA 1, 3, 4, 4X, and12 ratings. This multi-layered environmental seal ensures complete watertight and dust-tight integrity, keeping your pilot devices perfectly isolated from high-pressure water streams, splashing oil, and airborne metallic grit.

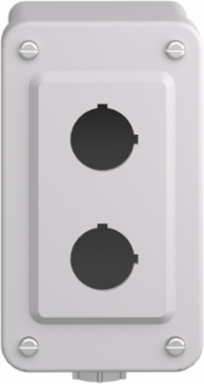

- Featuring two vertically aligned 30mm cutouts, this enclosure is engineered precisely for the Harmony 9001K metal and 9001SK plastic pushbutton, pilot light, and selector switch operator families. This dual-hole configuration gives industrial controls technicians the perfect platform to build self-contained, remote two-button start/stop or up/down stations without modifying or drilling the housing.
- The station comes factory-equipped with a precise, pre-tapped single 3/4-inch NPT knockout thread at the base for rapid conduit installation. This eliminates the risk of cracking or wall stress associated with manual field punching, ensuring a quick, reliable fit for liquid-tight fittings and secure cable strain reliefs.
- Engineered to operate flawlessly across a broad temperature range spanning from -25°C to 70°C (-13°F to 158°F) with built-in TH protective treatment, this box withstands intense seasonal thermal shock. This rugged resilience makes it ideal for unheated warehouses, outdoor conveyor assemblies, and processing facilities where extreme heat or sub-zero conditions frequently crack low-grade plastics.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK || Harmony 9001K
- Product Or Component Type
- empty enclosure
- Device Short Name
- 9001SK
Cable Entry1 entry tapped for 3/4'' knockout
Number Of Cut-Out2 cut-outs
Complementary
- Product Destination
- for Ø 30 mm control and signalling units
- Net Weight
- 0.69 kg
Materialplastic
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Overvoltage Category
- II IEC 61140
- Protective Treatment
- TH
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 3 || NEMA 4 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121030EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
