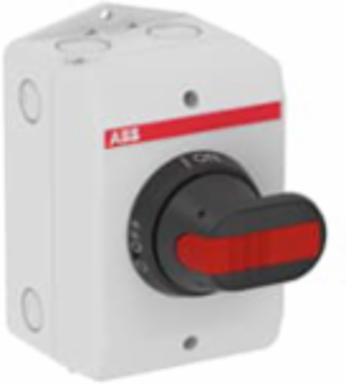

ABB EOT32U3P4-1P EOT32U3P4-1P Enclosed Disconnect Switch
- MPN: EOT32U3P4-1P
- UPC: 662019444956
- PPN: ABB-EOT32U3P4-1P
- UNSPSC: 39122233
CAD
$299.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Enclosed Switch Disconnector, 3-p. Max. Horse power rating at three phase 480V 20HP. General purpose current rating 40A. Plastic enclosure, NEMA Type 4/4X Watertight, Pistol handle. Interlocked cover. Defeatable interlocking.
Specifications
Dimensions
- Product Net Width
- 100 mm3.94 in
- Product Net Depth / Length
- 81 mm3.19 in
Product Net Height161.4 mm6.35 in
Product Net Weight0.66 kg1.46 lb
Technical
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 40 A(690 V) 40 A
- Conventional Thermal Current (Ithe)
- 40 A
- Rated Operational Voltage
- Main Circuit 750 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 0.5 kA
- Handle Color
- Black
- Position of Line Terminals
- Top In - Bottom Out
- Number of Poles
- 3
- Cable Entry Position
- Up/Down
- Degree of Protection
- acc. to IEC 60529 IP65
- Enclosure Material
- Plastic
- Terminal Type
- Screw Terminals
- Mechanical Durability
- 20000
Rated Operational Current AC-23A (Ie)(690 V) 23 A(690 V) 380415V12 A
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 0.71 kA
Pollution Degree3
Handle TypePistol handle
StandardsIEC 60947-1, -3 / UL 508
Connecting Capacity Main CircuitScrew Clamp 0.75...10 mm²Screw Clamp / PE Terminal 1pcs, 0.5…16 mm²
Cable Outlets Per Side2x(ø0.5 / 12.7+ø0.75 / 19.1)
Enclosure TypeNEMA Type 4/4X Watertight
Mounted Auxiliary Contacts1 NO, 0 NC
Tightening Torqueacc. IEC 60947-1 0.8 N·m
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5293 >> Switch disconnector
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 600 V
- Horsepower Rating UL/CSA
- (220 ... 240 V AC) Three Phase 10 Hp(480 V AC) 20 Hp(600 V AC) 25 Hp
- Tightening Torque UL/CSA
- Main Circuit 7 in·lb
Ampere Rating40 A
Tightening Torqueacc. IEC 60947-1 0.8 N·m
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Mexico (MX)
Customs Tariff Number85363030
