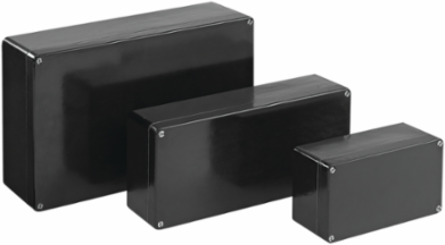

nVent Hoffman EXE1607575 ZonEx Non-Metallic Terminal Enclosure, 75x160x75mm, Black, Fiberglass

MPN: EXE1607575
UPC: 783510262389
PPN: HOF-EXE1607575
UNSPSC: 39121309

$190.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Zonex Non-Metallic Terminal Enclosure is ideal for termination in hazardous location maintaining certification. This ZonEx Non-Metallic Terminal Enclosure, EXE1607575 item measures 75x160x75mm with a material of Fiberglass colored Black.

Features

Compression-molded, high-impact strength, polyester body and cover
Cover includes recessed, retained, combination head (Straight blade, Phillips and Torx drive) M4 or M6 stainless steel Type 316 screws
Retained, continuous, high-temperature silicon gasket within a labyrinth seal between cover and body
Durable and reusable, internal M4 or M6 stainless steel inserts for DIN- and Panel-mounting
Covered mounting screw provisions outside of gasketed area, sized M4 (#8) or M6 (¼-in.)
Mounting location dimensions are molded into the back side of the enclosure
Panel mounting screws included, M4 or M6
Compression-molded fiberglass with added agents to address static charge build-up
High-impact strength as well as high temperature-rated
Increased Safety: Ex e applications
Optional panels are pre-plated steel, 1.5mm (16 ga.) thick; or 2mm composite
