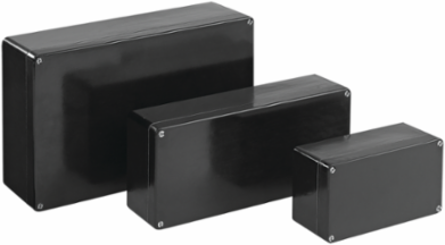

nVent Hoffman EXE1907575 ZonEx Non-Metallic Terminal Enclosure, 75x190x75mm, Black, Fiberglass
- MPN: EXE1907575
- UPC: 783510262426
- PPN: HOF-EXE1907575
- UNSPSC: 39121309
CAD
$215.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Zonex Non-Metallic Terminal Enclosure is ideal for termination in hazardous location maintaining certification. This ZonEx Non-Metallic Terminal Enclosure, EXE1907575 item measures 75x190x75mm with a material of Fiberglass colored Black.
Features
- Compression-molded, high-impact strength, polyester body and cover
- Cover includes recessed, retained, combination head (Straight blade, Phillips and Torx drive) M4 or M6 stainless steel Type 316 screws
- Retained, continuous, high-temperature silicon gasket within a labyrinth seal between cover and body
- Durable and reusable, internal M4 or M6 stainless steel inserts for DIN- and Panel-mounting
- Covered mounting screw provisions outside of gasketed area, sized M4 (#8) or M6 (¼-in.)
- Mounting location dimensions are molded into the back side of the enclosure
- Panel mounting screws included, M4 or M6
- Compression-molded fiberglass with added agents to address static charge build-up
- High-impact strength as well as high temperature-rated
- Increased Safety: Ex e applications
- Optional panels are pre-plated steel, 1.5mm (16 ga.) thick; or 2mm composite
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 75
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Gloss
- Mounting Screw Size
- #8
- Weight
- 1.2
- Size
- 75x190x75mm
Height (H)190
Depth (D)75
Product FamilyZonex
Thickness (T)4.1
NEMA Rating12 Indoor, dust-resistant
MaterialPolyester
ColorBlack
