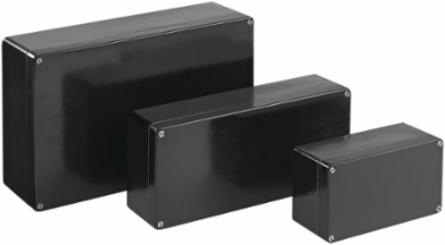

nVent Hoffman EXE22012090 ZonEx Non-Metallic Terminal Enclosure, 120x220x90mm, Black, Fiberglass
nVent Hoffman EXE22012090 ZonEx Non-Metallic Terminal Enclosure, 120x220x90mm, Black, Fiberglass
- MPN: EXE22012090
- UPC: 783510262440
- PPN: HOF-EXE22012090
- UNSPSC: 39121309
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$231.54/ EA
Description
Zonex Non-Metallic Terminal Enclosure is ideal for termination in hazardous location maintaining certification. This ZonEx Non-Metallic Terminal Enclosure, EXE22012090 item measures 120x220x90mm with a material of Fiberglass color Black.
Features
- Compression-molded, high-impact strength, polyester body and cover
- Cover includes recessed, retained, combination head (Straight blade, Phillips and Torx drive) M4 or M6 stainless steel Type 316 screws
- Retained, continuous, high-temperature silicon gasket within a labyrinth seal between cover and body
- Durable and reusable, internal M4 or M6 stainless steel inserts for DIN- and Panel-mounting
- Covered mounting screw provisions outside of gasketed area, sized M4 (#8) or M6 (ΒΌ-in.)
- Mounting location dimensions are molded into the back side of the enclosure
- Panel mounting screws included, M4 or M6
- Compression-molded fiberglass with added agents to address static charge build-up
- High-impact strength as well as high temperature-rated
- Increased Safety: Ex e applications
- Optional panels are pre-plated steel, 1.5mm (16 ga.) thick; or 2mm composite
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 120
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Gloss
- Mounting Screw Size
- 1/4"
- Weight
- 4.1
- Size
- 120x220x90mm
Height (H)220
Depth (D)90
Product FamilyZonex
Thickness (T)4.1
NEMA Rating12 Indoor, dust-resistant
MaterialPolyester
ColorBlack
