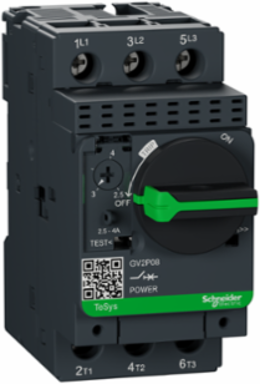

Schneider Electric GV2P08 TeSys Deca Motor Circuit Breaker 3P 2.5-4A Thermal Magnetic
- MPN: GV2P08
- PPN: SCH-GV2P08
CAD
$187.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2P controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 2.5 ampere to 4 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- The Schneider GV2P08 is a 3-pole (3P) manual motor circuit breaker. It provides local manual control and comprehensive protection for electric motors, combining the roles of a disconnect switch, thermal overload protection, and short-circuit protection in one compact 45mm-wide unit.
- The GV2P08 features an adjustable thermal trip setting of 2.5 to 4 Amps. This range is specifically designed for small 3-phase motors. For example: 1.1 kW to 1.5 kW at 400/415V 2.2 kW at 500V Approx. 2 HP at 480V or 3 HP at 600V (depending on the motor's specific Full Load Amps). You can precisely set the dial to match your motor's nameplate FLA for optimal protection.
- This model is built for high-performance safety. It offers an ultimate short-circuit breaking capacity (Icu) of 100kA at 400/415V and 100kA at 480V (UL/CSA). This ensures that the breaker can safely interrupt massive faults without failing, preventing damage to the rest of your electrical system.
- The GV2P series uses a high-durability rotary handle. This provides a clear visual indication of the status: ON (I), OFF (O), and TRIP. The rotary handle is designed to be more robust than push-button starters and can be padlocked in the "OFF" position for safe maintenance (Lockout/Tagout).
- The GV2P08 includes built-in phase failure sensitivity. If one phase of your 3-phase supply drops out (single-phasing), the breaker will trip to prevent the motor from overheating and burning out a critical feature for maintaining expensive industrial equipment.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 4 A IEC 60947-4-1
- Breaking Capacity
- 100 kA @ 400/415 V AC IEC 60947-2
- Magnetic Tripping Current
- 51 A
- Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Rated Duty
- continuous IEC 60947-4-1
- Motor Power
- 1.1 kW @ 400/415 V AC, 1.5 kW @ 500 V AC, 2.2 kW @ 690 V AC 50/60 Hz
- Utilisation Category
- Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
- Suitability for Isolation
- Yes IEC 60947-1 7-1-6
- Dimensions (W x H x D)
- 45 mm x 89 mm x 97 mm (1.77 in x 3.50 in x 3.82 in)
- Height
- 89 mm
- Control Type
- Rotary handle
- Tightening Torque
- 1.7 N.m screw clamp terminal
- IP Degree of Protection
- IP20 IEC 60529
- Ambient Air Temperature for Operation
- -20 to 60 C (-4 to 140 F)
- Fire Resistance
- 960 C IEC 60695-2-11
- Operating Altitude
- 2000 m (6561.68 ft)
- Certifications
- CCC, UL, CSA, EAC, ATEX, Lloyds Register, BV, RINA, DNV-GL, UKCA
Current Range2.5-4 A
Thermal Protection Adjustment Range2.5-4 A IEC 60947-4-1
Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
Rated Impulse Withstand Voltage6 kV IEC 60947-2
Mechanical Durability100000 cycles
Poles3P
Network Frequency50/60 Hz IEC 60947-4-1
Phase Failure SensitivityYes IEC 60947-4-1
Power Dissipation per Pole2.5 W
Width45 mm
Depth97 mm
Mounting35 mm symmetrical DIN rail clipped or panel screwed with 2 x M4 screws
Materialdark grey finish
IK Degree of ProtectionIK04
Ambient Air Temperature for Storage-40 to 80 C (-40 to 176 F)
Mechanical RobustnessShocks 30 Gn for 11 ms, Vibrations 5 Gn 5-150 Hz
StandardsEN/IEC 60947-2, EN/IEC 60947-4-1
ComplianceRoHS Compliant; REACh (Green Premium)
