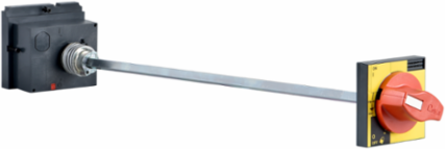

Schneider Electric GV7AP02 Extended Rotary Handle, IP55, Padlockable, Yellow/Red, 185-600 mm
- MPN: GV7AP02
- PPN: SCH-GV7AP02
CAD
$150.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV extended rotary handle, for motor circuit breakers GV5, GV6, GV7 mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP55 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 185-600mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately).
Features
- The Schneider Electric GV7AP02 extended rotary handle is engineered specifically for direct mechanical compatibility with TeSys GV5, GV6, and GV7 motor circuit breakers. This targeted fit eliminates component mismatch guesswork during panel building or system upgrades, ensuring a precise interface with your heavy-duty motor control units.
- Engineered to maintain enclosure integrity, this front-mounted door mechanism carries a verified IP55 protection rating. It effectively seals out dust, grease, and low-pressure water splashes, allowing maintenance teams to safely operate internal circuit breakers from the outside without exposing sensitive internal busbars to contamination.
- Featuring a high-visibility red ergonomic handle against a bold yellow front legend plate, this rotary mechanism is specifically color-coded for immediate visual recognition as an emergency switch. The interface provides definitive visual indication across three operational states OFF, ON, and TRIP ensuring operators can diagnose breaker conditions instantly under high-stress fault events.
- Designed to secure industrial workspaces during routine servicing, this rotary assembly is fully padlockable in the safe OFF position and accommodates up to three individual padlocks. This built-in multi-lock safety mechanism directly simplifies compliance with strict OSHA Lockout/Tagout (LOTO) protocols, protecting technicians from premature circuit re-engagement.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1905002EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2030
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- extended rotary handle
- Energy Efficiency Optimized
- False
- Product Or Component Type
- extended rotary handle
- Returnability
- Yes
- Rotary Handle Mounting Style
- extended
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Handle Front Plate Color
- yellow
- Accessory / Separate Part Category
- control accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Local Publishable Date2025-04-05
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Device Short NameGV7AP
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
Rotary Handle Mounting Locationfront
Sustainable PackagingNo
Handle Colorred
Pep CodeENVPEP1905002EN
Back/Door Distance185-600 mm
Package Weight(Lbs)652.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1905002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP1905002EN
Ip Degree Of ProtectionIP55
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1905002EN
General Attributes
- Product Or Component Type
- extended rotary handle
ETIM
- ETIM 8
- EC000230
ETIM 9EC000230
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
