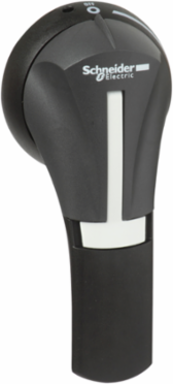

Schneider Electric GS2AH430 TeSys GS External Rotary Handle, NEMA 4/4X, Black, Padlockable, 30-400A
- MPN: GS2AH430
- PPN: SCH-GS2AH430
CAD
$146.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
Features
- The Schneider Electric GS2AH430 external rotary handle is engineered for complete range compatibility across the TeSys GS series, specifically designed for front-mounted 30A, 60A, 100A, 200A, and 400A UL-rated fusible disconnect switches (including GS2EU, GS2GU, GS2JU, GS2MU, and GS2QU). This versatile configuration eliminates multi-vendor sourcing issues, ensuring a precise mechanical fit and seamless operation without the risk of loose mechanical linkages.
- This robust, heavy-duty black rotary handle carries dual UL and CSA certifications alongside a stringent NEMA 4/4X ingress rating, making it completely dust-tight, water-tight, and highly resistant to corrosion. Installing this handle on your enclosure door safeguards your critical internal controls against aggressive washdowns, airborne particulate matter, and demanding outdoor conditions.
- Designed to meet rigorous industrial safety standards, the front plate includes a dedicated padlocking facility to secure the 2-position (I-O / On-Off) switch mechanism. This allows maintenance technicians to lock out the physical disconnect switch reliably during field service operations, preventing accidental re-energization and maintaining full compliance with corporate safety protocols.
- This heavy-duty external actuator is engineered to seamlessly maintain the integrity of systems rated for high short-circuit performance up to 100 kA. By using an authentic TeSys GS series component, you guarantee that the entire control sub-assembly operates safely within high-fault industrial environments without creating a weak link in your power distribution system.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- TeSys
- Range Compatibility
- TeSys TeSys GS GS2EU || TeSys TeSys GS GS2GU || TeSys TeSys GS GS2JU || TeSys TeSys GS GS2MU || TeSys TeSys GS GS2QU
- Handle Colour
- black
- Range
- TeSys
Type Of Operating Handleexternal frontal
Handle Front Plate Colourgrey
Product Or Component Typerotary handle
Device Short NameGS2AH
Complementary
- Standards
- CSA || UL
- Net Weight
- 0.24 kg
- [In] Rated Current
- 30 A || 60 A || 100 A || 200 A || 400 A
MarkingO-I
Rotary Handle Padlockingwith
Environment
- Nema Degree Of Protection
- NEMA 4/4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
