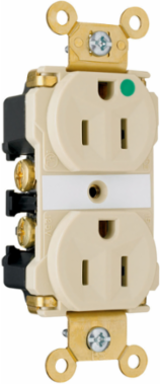

Pass & Seymour 8200ILRED 15A 125V Extra Heavy-Duty LED Illuminated Face Duplex Receptacle, Red, 1.625 Inch Width, 2.75 Inch Height
- MPN: 8200ILRED
- UPC: 785007820218
- PPN: P-S-8200ILRED
CAD
$84.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Extra Heavy-Duty LED Illuminated Face Duplex Receptacle, Red, 1.625 Inch Width, 2.75 Inch Height
Features
- One-piece nickel-plated brass mounting strap with integral ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Two drive screws anchor strap to back body and face.
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Oversized #10 deep tri-drive head brass terminal and ground screws.
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.866 in
- Height
- 2.75 in
- Width
- 1.625 in
- Country of Origin
- Mexico
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-15R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
- Features
- Single Piece Plated Steel Mounting Strap
- Special Features
- Illuminated version features exclusive LED lamp with solder connection for long durable life (10-12 years). One-piece nickel-plated brass mounting strap with integral ground. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. Exclusive patented feature, circuit label on face allows permanent circuit identification. .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and back body. Oversized #10 deep tri-drive head brass terminal and ground screws. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Line terminals accept #14 - #10 AWG stranded or solid copper-clad conductors. Auto-ground clip assures positive ground.
ColorRed
Product LinePass & Seymour
Amperage15.0 A
Voltage125.0 V
FeaturesNightlight
StandardcULus UL498
Wire Size14 - 10 AWG
Number of Receptacles2.0
Outlet TypeHospital Grade
Number of PolesDouble Pole
Application SectorHealthcare
Connection LocationBack and Side
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Wire Connection TypeInternal Pressure Plates
Environmental ConditionsFlammability: UL94 V2 and UL94-5 VA
