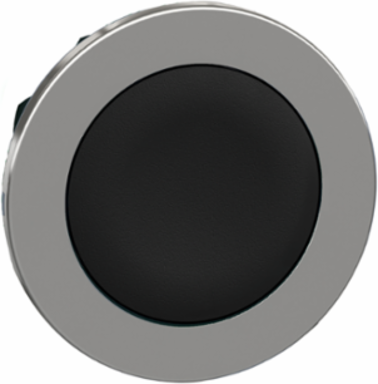

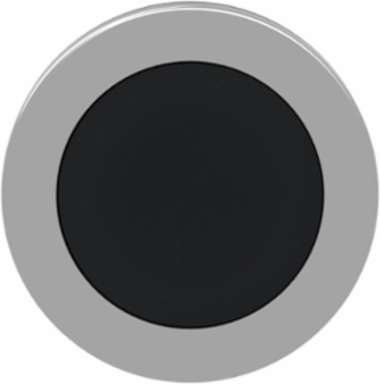

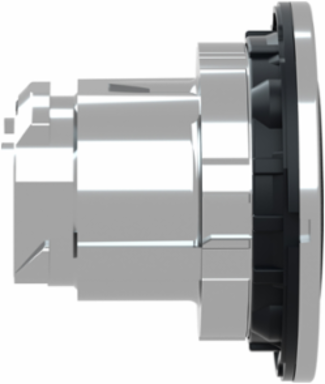

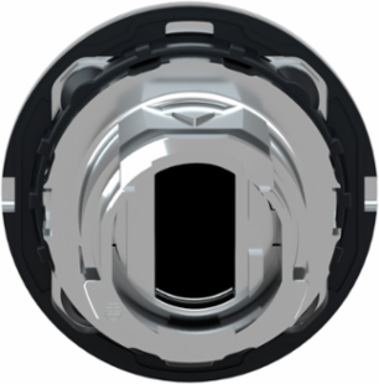

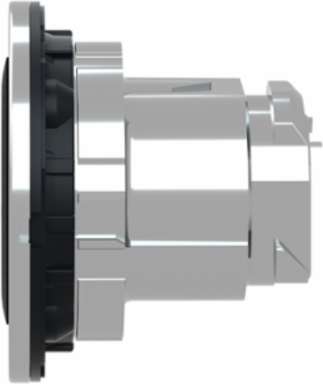

Schneider Electric ZB4FA2 Harmony XB4 Flush Push Button Head 30mm Metal Black Spring Return
Schneider Electric ZB4FA2 Harmony XB4 Flush Push Button Head 30mm Metal Black Spring Return
- MPN: ZB4FA2
- PPN: SCH-ZB4FA2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$16.71/ EA
Description
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- UL listed || CSA || CCC || EAC
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Overvoltage Category
- class I IEC 60536
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsCSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Device Presentation
- basic element
- Cad Overall Width
- 36.6 mm
Cad Overall Height36.6 mm
Mechanical Durability10000000 cycles
Cad Overall Depth31 mm
Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- black flush, unmarked
Mounting Diameter30.5 mm
Product Or Component Typehead for non-illuminated push-button
Head Typebuilt-in-flush
Bezel Materialchromium plated metal
Device Short NameZB4F
