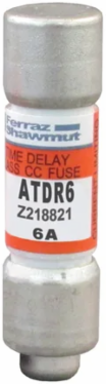

Mersen ATDR6 Amp-Trap 2000® Class CC Time-Delay Fuse 600V 6A - 200kA I.R., 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATDR6
- UPC: 782001901035
- PPN: FER-ATDR6
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- The ATDR6 is a 6-Amp, 600V Class CC fuse featuring a specialized rejection tip. This physical safety feature ensures that only a high-performance Class CC fuse can be installed in the holder, preventing the accidental use of lower-rated "midget" fuses that could fail to protect your critical branch circuits during a major fault.
- Specifically engineered for small motor and control transformer protection, the ATDR6 provides exceptional time-delay characteristics. It is designed to "ride through" the massive initial current surges of inductive loads without nuisance tripping, while still providing ultra-fast protection against actual overcurrent events.
- As a highly current-limiting component, the ATDR6 provides Type 2 "No Damage" protection. In the event of a short circuit, it reacts in less than half a cycle (<0.008 seconds) to drastically limit the peak "let-through" energy (I^2t). This prevents catastrophic thermal damage to downstream components like contactors and solid-state starters.
- With a massive 200,000 Amp RMS interrupting rating, this fuse is suitable for the most demanding power systems. It allows for a high Short Circuit Current Rating (SCCR) in your control panels, ensuring the fuse can safely clear a catastrophic short circuit without the risk of an explosion or Arc Flash hazard.
- Constructed with a high-grade fiberglass body and silver-plated copper contact caps, the ATDR6 offers superior dimensional stability. Unlike cheaper plastic-bodied fuses, it will not become brittle or lose calibration when exposed to the high-heat, high-vibration environments common in industrial machinery and HVAC systems.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupt Rating
- 200 kA AC
- Length
- 1.5 in
- Body Material
- GMG (Fiberglass)
- Connection Terminal Type
- Ferrule
- Fuse Class
- Class CC
Amperage6 A
Frequency50/60 Hz
Weight0.017 lb
Connection Terminal MaterialTin-Plated Copper
MountingClip
Speed/CharacteristicTime Delay
