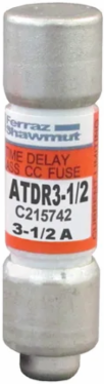

Mersen ATDR3-1/2 Fuse Amp-Trap 2000® 600V 3.5A Time-Delay Class CC, 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATDR3-1/2
- UPC: 782001908553
- PPN: FER-ATDR3-1/2
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- Featuring a standardized Class CC rejection tip, this 1-1/2 in times 13/32 in (38 times 10 mm) fuse physically blocks the insertion of lower-rated or standard midget fuses into Class CC fuse blocks or disconnects. This mechanical safeguard prevents downstream wiring and components from being subjected to fault energies beyond their capacity, ensuring strict compliance with NEC® Article 240 and 430 requirements.
- The Amp-Trap 2000® design delivers precise current limitation under fault conditions, reducing both the magnetic and thermal stresses placed on system components. By cutting off destructive short-circuit currents within milliseconds, it prevents insulation breakdown in small control transformers and contactors, drastically reducing facility maintenance overhead and emergency downtime.
- Constructed with a high-durability fiberglass body and premium plated copper alloy end caps, this fuse resists tracking and physical degradation in high-temperature control cabinets. The robust physical architecture prevents dimensional shifting under severe thermal cycles, guaranteeing low-resistance contact seating and maintaining consistent, predictable overcurrent protection.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC / 300 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Fuse Class
- Class CC
- Diameter
- 0.41 in
- Mounting
- Clip
- Connection Material
- Tin-Plated Copper
- Frequency
- 50/60 Hz
Amperage3.5 A
Fuse TypeTime Delay
Length1.5 in
Weight0.017 lb
Connection TypeFerrule
MaterialGMG body, high-grade silica filler
ApprovalsUL Listed 248-4, CSA Certified C22.2 No. 248.4
