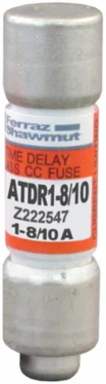

Mersen ATDR1-8/10 Fuse Amp-Trap 2000 600V 1.8A Class CC Time-Delay Fuse
- MPN: ATDR1-8/10
- UPC: 782001908515
- PPN: FER-ATDR1-8/10
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- This Amp-Trap 2000 series fuse is engineered with superior time-delay characteristics specifically designed to ride out temporary motor starting inrush currents. This prevents frustrating nuisance opening and costly downtime while still delivering pinpoint protection against sustained overloads for your small motors, contactors, and general branch circuits.
- Boasting a massive 200 kA AC and 100 kA DC interrupting rating to reliably isolate extreme short-circuit faults. This heavy-duty capacity provides critical "No Damage" IEC Type 2 protection, safeguarding your facility's increasingly sensitive control components and panels from structural or electrical destruction.
- This is a standard Class CC cylindrical fuse measuring 13/32 inches in diameter by 1-1/2 inches in length (10.4 mm times 38.1 mm) featuring a rejection-style ferrule design. When paired with a matching Class CC fuse block, the physical rejection tip prevents dangerous replacement errors by blocking standard, non-current-limiting fuses from being installed into the slot.
- It is highly current-limiting, drastically minimizing peak let-thru current and limiting thermal and magnetic stress on your downstream electrical architecture during a fault. This superior quenching performance ensures that transient spikes are choked out before they can degrade or destroy your PLCs, solid-state relays, and control transformers.
- Built for the real world, the fuse features a high-strength fiberglass body that maintains complete dimensional stability in high-temperature, high-vibration industrial environments. It is finished with a high-visibility orange label for immediate field recognition and a metal-embossed catalog number to ensure permanent traceability even after years of service.
Documentation & Downloads
Specifications
Additional
- Amperage
- 1.8 A
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Fuse Type
- Time Delay
- Length
- 1.5 in
- Mounting
- Clip
- Weight
- 0.017 lb
- Compliance
- UL Listed, CSA Certified, DC Listed
Voltage600 V AC, 300 V DC
Fuse ClassClass CC
Frequency50/60 Hz
Connection MaterialTin-Plated Copper
Body MaterialGMG
Connection TypeFerrule
