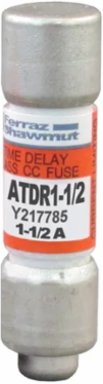

Mersen ATDR1-1/2 Fuse Amp-Trap 2000® 600V 1.5A Time-Delay Class CC, Compact Design
- MPN: ATDR1-1/2
- UPC: 782001908508
- PPN: FER-ATDR1-1/2
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- The Mersen ATDR1-1/2 is a 1.5-Amp, 600V AC Amp-Trap 2000® Class CC fuse. It is a premium, "smart" fuse designed specifically to provide the highest level of protection for control transformers, solenoids, and small motor branch circuits in Canadian industrial and commercial settings.
- This fuse features a sophisticated time-delay characteristic. It is engineered to "ride through" the temporary high-current surges caused by starting small motors or energizing control transformers (up to 1.5 Amps), preventing nuisance blowing while still offering pinpoint accuracy for long-term overloads.
- Despite its small physical size, the ATDR1-1/2 boasts a massive 200,000 Amp Interrupting Rating (AIC). This ensures that the fuse can safely clear even the most violent short-circuit faults without rupturing, protecting your control panel’s internal components and the personnel working near them.
- As a Class CC fuse, the ATDR1-1/2 is highly current-limiting. It reacts to short circuits in less than half a cycle, drastically reducing the "let-through" energy ($I^2t$). This prevents the thermal and magnetic forces of a fault from damaging downstream components like contactors and sensitive PLC input modules.
- The "Class CC" designation means this fuse has a unique rejection tip on one end. When used with a Class CC fuse holder, this physical feature prevents the installation of standard midget fuses (which lack the 200kA rating and current-limiting properties), ensuring the integrity of your engineered safety system.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Fuse Type
- Time Delay
- Frequency
- 50/60 Hz
- Breaking Capacity
- 200 kA
- Mounting
- Clip
- Connection Terminal Type
- Ferrule
- Weight
- 0.017 lb
Amperage1.5 A
Fuse ClassClass CC
AC or DCAC/DC
Length1.5 in
Connection Terminal MaterialTin-Plated Copper
Body Insulating MaterialGMG
