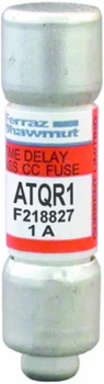

Mersen ATQR1 Amp-Trap 2000® 600V 1A Time-Delay Class CC Fuse, 1.5 Inch Length
- MPN: ATQR1
- UPC: 782001906375
- PPN: FER-ATQR1
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Featuring the specialized Class CC "rejection" tip, this fuse is specifically designed to prevent the accidental installation of lower-rated or non-current-limiting fuses into your control circuits. This mechanical safeguard ensures that your high-performance motor control centers and branches remain protected by the exact level of current limitation required by UL standards.
- Specifically engineered with a "slow-blow" time-delay characteristic, the ATQR1 safely absorbs the massive momentary surges typical of small control transformers and inductive loads. By allowing for these brief peaks without tripping, it eliminates annoying and costly nuisance blowing while maintaining a hair-trigger response to genuine short circuits and sustained overloads.
- Rated for precision protection at 1 Amp, this fuse provides the highly sensitive overcurrent defense necessary for the primary side of control transformers and lighting ballasts. Operating at up to 600V AC, it offers a versatile solution for industrial voltage levels, ensuring that delicate internal components are shielded from thermal damage during a fault event.
- As a highly current-limiting device, the ATQR1 significantly reduces the "let-through" energy during a short circuit, preventing catastrophic damage to sensitive electronic relays and contactors. With a massive 200kA interrupting rating, it safely clears high-magnitude faults, protecting your equipment from mechanical stress and ensuring your industrial panel maintains a high Short Circuit Current Rating (SCCR).
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Speed/Characteristic
- Time Delay
- Connection/Terminal Material
- Tin-Plated Copper
- Weight
- 0.017 lb
- Mounting
- Clip
- RoHS Compliance
- Yes
Amperage1 A
Fuse ClassClass CC
Length1.5 in
Connection/Terminal TypeFerrule
Frequency50/60 Hz
Body/Insulating MaterialGMG
