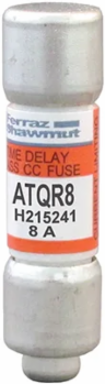

Mersen ATQR8 Amp-Trap 2000® 600V 8A Time-Delay Class CC Fuse, 0.41 Inch Diameter
- MPN: ATQR8
- UPC: 782001906641
- PPN: FER-ATQR8
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Engineered specifically to handle high inductive startup surges, the ATQR8 delivers precise time-delay performance without nuisance tripping. This specialized dual-element capability keeps your control transformers, solenoids, and small motor mechanisms running smoothly through initial power spikes, minimizing costly machinery downtime.
- Featuring a stellar 200kA interrupting rating at 600VAC, this Amp-Trap 2000® series fuse dampens destructive short-circuit energy long before it reaches maximum fault currents. The internal high-grade silica sand filler ensures ultra-rapid arc quenching, significantly lowering peak let-thru currents to protect vulnerable industrial control panels and circuit breakers from catastrophic thermal damage.
- Designed strictly to standard Class CC structural parameters, the ATQR8 features a unique rejection tip that works seamlessly with specialized rejection fuse blocks and modules. This mechanical fail-safe physically locks out lower-rated or non-current-limiting midget fuses from being mistakenly installed, ensuring your facility consistently meets strict NEC branch circuit safety guidelines.
- The Mersen ATQR8 is fully UL Listed to Standard 248-4 and CSA Certified to C22.2 No. 248.4, proving it meets rigorous North American industrial standards. Additionally, the crisp, orange label layout and permanently stamped product catalog data guarantee long-term field traceability, simplifying routine facility maintenance audits and system retrofits.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC / 300 V DC
- Fuse Class
- Class CC
- AC Max I.R./Breaking Capacity
- 200 kA
- Length
- 1.5 in
- Weight
- 0.017 lb
- Connection/Terminal Material
- Tin-Plated Copper
- Mounting
- Clip
- RoHS Compliance
- Yes
Amperage8 A
Speed/CharacteristicTime Delay
Frequency50/60 Hz
Diameter0.41 in
Body/Insulating MaterialGMG
Connection/Terminal TypeFerrule
AC or DCAC/DC
