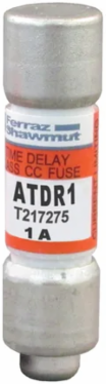

Mersen ATDR1 Fuse Amp-Trap 2000® 600V 1A Time-Delay Class CC, 1.5 Inch Length, Clip Mounting
- MPN: ATDR1
- UPC: 782001900922
- PPN: FER-ATDR1
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- The ATDR1 is a 1-Amp, 600V Class CC fuse featuring a specialized rejection tip. This physical safety feature ensures that only a high-performance Class CC fuse can be installed in the holder, preventing the accidental use of lower-rated "midget" fuses that could fail to protect your critical control circuits during a major fault.
- Specifically engineered for the protection of small control transformers and inductive loads, the ATDR1 provides exceptional time-delay characteristics. It is designed to "ride through" the massive initial magnetizing inrush currents without nuisance tripping, while still providing ultra-fast protection against sustained overloads.
- As a highly current-limiting component, the ATDR1 provides Type 2 "No Damage" protection. In the event of a short circuit, it reacts in less than half a cycle (<0.008 seconds) to drastically limit the peak "let-through" energy (I^2t). This prevents catastrophic thermal damage to downstream components like contactors and PLC input modules.
- With a massive 200,000 Amp RMS interrupting rating, this fuse is suitable for the most demanding power systems. It allows for a high Short Circuit Current Rating (SCCR) in your control panels, ensuring the fuse can safely clear a catastrophic short circuit without the risk of an explosion or Arc Flash hazard.
- Constructed with a high-grade fiberglass body and silver-plated copper contact caps, the ATDR1 offers superior dimensional stability. Unlike cheaper plastic-bodied fuses, it will not become brittle or lose calibration when exposed to the high-heat, high-vibration environments common in industrial machinery and HVAC control cabinets.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupting Rating AC
- 200 kA
- Fuse Type
- Time Delay
- Length
- 1.5 in
- Mounting
- Clip
- Connection Material
- Tin-Plated Copper
- Frequency
- 50/60 Hz
Amperage1 A
Interrupting Rating DC100 kA
Fuse ClassClass CC
Weight0.017 lb
Connection TypeFerrule
Body/Insulating MaterialGMG
StandardsUL 248-4, CSA C22.2 No. 248.4
