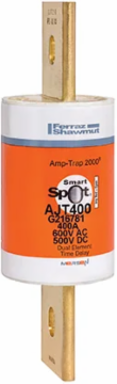

Mersen AJT400 Class J Fuse 600V 400A Time-Delay with SmartSpot Indicator, 2.12 Inch Diameter
- MPN: AJT400
- UPC: 782001962203
- PPN: FER-AJT400
CAD
$164.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- As a high-performance Amp-Trap 2000® Class J fuse, this component provides superior current limitation by clearing faults in less than half a cycle. By drastically reducing the "let-through" energy during a short circuit, it prevents catastrophic thermal and magnetic damage to sensitive motor starters, contactors, and variable frequency drives (VFDs), extending the lifespan of your critical industrial machinery.
- Designed with a deliberate 10-second time delay at 500% of its 400-amp rating, this fuse easily handles the massive inrush currents typical of large industrial motors and transformers. This allows your facility to maintain continuous operation without the productivity loss and labor costs associated with unnecessary fuse replacements caused by standard startup surges.
- The AJT400 utilizes the standardized, compact Class J footprint, which is significantly smaller than equivalent Class R fuses. This smaller physical profile allows engineers and panel builders to design more space-efficient enclosures and reduces the overall footprint of your electrical distribution system without sacrificing high-voltage protection capabilities.
- Rated for both 600V AC and 500V DC, this versatile fuse is ideal for a wide range of applications, from traditional industrial power distribution to modern solar (PV) and battery storage systems. Its dual-rating simplifies inventory management for facility managers by providing a single, reliable overcurrent solution for diverse electrical architectures.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 500 V DC
- Interrupting Rating
- 200 kA AC
- Diameter
- 2.12 in
- Weight
- 1.79 lb
- Connection/Terminal Type
- Blade
- Body/Insulating Material
- GMG, Fiberglass body with high-grade silica filler
- Frequency
- 50/60 Hz
- Fuse Class
- Class J
- Compliance
- UL Listed to standard 248-8, CSA Certified, IEC 60269-2-1
Amperage400 A
Speed/CharacteristicTime Delay
Length7.13 in
MountingClip or Bolted
Connection/Terminal MaterialBrass
Indication SystemSmartSpot visual open fuse indicator
AC or DCAC/DC
ROHS CompliantYes
