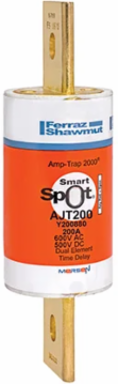

Mersen AJT200 Fuse Amp-Trap 2000® 600V 200A Class J Time-Delay with SmartSpot Indicator
Mersen AJT200 Fuse Amp-Trap 2000® 600V 200A Class J Time-Delay with SmartSpot Indicator
- MPN: AJT200
- UPC: 782001962494
- PPN: FER-AJT200
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$91.76/ EA
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Specifications
- Voltage
- 600 V AC, 500 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Time Delay
- Yes
- Frequency
- 50/60 Hz
- Connection Type
- Blade
- Length
- 5.75 in (5-3/4 in)
- Body Material
- GMG (Glass Mat General purpose) fiberglass body with high-grade silica filler
- ROHS Compliant
- Yes
Amperage200 A
Fuse ClassClass J
Indication SystemSmartSpot® visual open fuse indicator
AC or DCAC/DC
MountingClip or Bolted
Weight0.764 lb
Connection MaterialBrass
