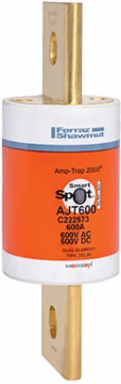

Mersen AJT600 Amp-Trap 2000® 600V 600A Time-Delay Class J Fuse with SmartSpot Indicator
- MPN: AJT600
- UPC: 782001962142
- PPN: FER-AJT600
CAD
$241.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- As a high-performance Amp-Trap 2000® component, this 600-amp fuse provides exceptional current limitation by rapidly clearing faults before they reach peak magnitude. This prevents destructive thermal and magnetic energy from reaching your sensitive downstream equipment, significantly lowering the risk of arc flash incidents and minimizing potential repair costs in high-energy industrial environments.
- Specifically engineered for the most demanding commercial power distribution systems, this fuse handles a continuous 600V AC load at 600 amps. It is the ideal solution for protecting large motor branch circuits, heavy-duty service entrances, and main feeders where maximum reliability and high-capacity overcurrent protection are non-negotiable requirements.
- Despite its high amperage, the AJT600 utilizes a standardized Class J blade-style footprint, which is significantly smaller than equivalent Class R or Class L fuses. This compact design allows electrical engineers and panel builders to reduce the overall size of disconnect switches and enclosures, saving valuable floor space in crowded mechanical rooms and manufacturing plants.
- Fully UL 248-8 Listed and CSA Certified, this fuse is a "no-compromise" safety component that ensures your installation meets the most stringent North American building codes. Its highly reliable performance and 200kA Interrupting Rating (IR) provide the peace of mind that your facility is protected by the highest standard of overcurrent technology available.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC / 400 V DC
- Interrupting Rating
- 200 kA AC
- Time-Delay
- Yes
- Connection Type
- Blade
- Length
- 8 in
- Body Material
- GMG
- Frequency
- 50/60 Hz
Amperage600 A
Fuse TypeClass J
IndicatorSmartSpot visual open fuse indicator
MountingClip or Bolted
Weight3.02 lb
Connection MaterialBrass
RoHS CompliantYes
