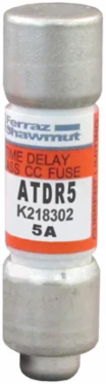

Mersen ATDR5 Fuse Amp-Trap 2000® 600V 5A Class CC Time-Delay, 1.5 Inch Length, Clip Mount
- MPN: ATDR5
- UPC: 782001901028
- PPN: FER-ATDR5
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- The ATDR5 is a 5-Amp, 600V AC/300V DC Class CC time-delay fuse from Mersen’s Amp-Trap 2000® series. It features a specialized "rejection" tip—a physical tab on the ferrule—that prevents the installation of non-rejection or lower-rated midget fuses into critical branch circuits, ensuring your system remains protected by the exact safety specifications required.
- Specifically engineered for small motor and control transformer protection, the ATDR5 provides superior time-delay characteristics. It is designed to "ride through" the high initial current surges of motor startups without nuisance tripping, while still offering ultra-fast, current-limiting protection during actual fault conditions.
- This fuse provides IEC Type 2 "no damage" protection, meaning it can stop a massive electrical fault in less than half a cycle (<0.008 seconds). With a 200,000 Amp RMS interrupting rating, it drastically limits the "let-through" energy (I^2t) during a short circuit, preventing catastrophic damage to sensitive downstream components like contactors and solid-state relays.
- The ATDR5 is constructed with a high-grade fiberglass body and silver-plated copper contact caps, ensuring excellent dimensional stability and electrical conductivity. This robust build prevents the fuse from becoming brittle or losing calibration when housed in compact, high-temperature control panels or HVAC units.
- The Mersen ATDR5 is UL Listed to Standard 248-4 (Class CC) and CSA Certified to Standard C22.2. Its high interrupting capacity and exceptional cycling ability make it the primary choice for meeting NEC® and CEC® requirements for branch circuit protection in industrial machinery, automation cabinets, and commercial lighting systems.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Fuse Class
- Class CC
- Interrupting Rating (AC)
- 200 kA
- Frequency
- 50/60 Hz
- Mounting Type
- Clip
- Body/Insulating Material
- GMG
- Connection/Terminal Type
- Ferrule
Amperage5 A
Time DelayYes
Interrupting Rating (DC)100 kA
Length1.5 in
Weight0.017 lb
Connection/Terminal MaterialTin-Plated Copper
ComplianceUL Listed, CSA Certified, DC Listed
