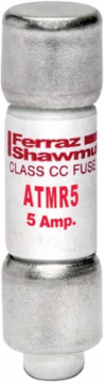

Mersen ATMR5 Amp-Trap 600V 5A Fast-Acting Class CC Fuse, 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATMR5
- UPC: 782001903893
- PPN: FER-ATMR5
CAD
$10.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Features
- Specifically engineered as a Mersen Amp-Trap 2000® component, this 5-Amp Class CC fuse is designed for the compact, space-saving protection required in modern control panels. Unlike standard midget fuses, its rejection-style physical footprint prevents the accidental installation of lower-rated fuses, ensuring your critical systems always maintain their intended level of safety and performance.
- This fuse is a highly "current-limiting" device, meaning it reacts within milliseconds to cut off fault currents before they reach their peak. By significantly reducing the destructive thermal and magnetic energy during a short circuit, it safeguards downstream PLC inputs, sensors, and small motors from catastrophic failure and prevents costly board-level repairs.
- Rated for a full 600 Volts in both AC and DC environments, the ATMR5 is an incredibly versatile solution for industrial branch circuit protection. Whether you are safeguarding control transformers or solar PV string combiners, this dual-rated capacity simplifies your inventory by providing a single, high-voltage component that meets diverse application needs.
- With a massive 200,000 Amp interrupting rating (AIC), this fuse is built to safely extinguish high-energy arcs without rupturing. This top-tier safety rating ensures your facility remains compliant with NEC Section 110.10 and OSHA safety requirements, providing industrial-grade peace of mind that your equipment and personnel are protected during the most severe electrical events.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Speed/Characteristic
- Fast-Acting
- Diameter
- 0.41 in
- Frequency
- 50/60 Hz
- Body/Insulating Material
- GMG
- Connection Terminal Type
- Ferrule
- Certification
- UL Listed to Standard 248-4, CSA Certified to C22.2 No. 248.4, DC Listed to UL 248
Amperage5 A
Fuse ClassClass CC
Length1.5 in
Weight0.017 lb
MountingClip
Connection Terminal MaterialTin-Plated Copper
RoHS CompliantYes
