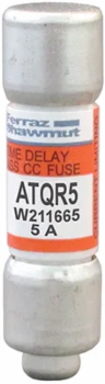

Mersen ATQR5 Fuse Amp-Trap 2000® 5A Time-Delay Class CC 600V, 1.5 Inch Length
- MPN: ATQR5
- UPC: 782001906580
- PPN: FER-ATQR5
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- The Mersen ATQR5 is a 5-Amp Class CC time-delay fuse specifically engineered for the high inrush currents associated with control transformers, solenoids, and small motor loads. Its "rejection-style" design provides a minimum 12-second time delay at 200% of its rating, preventing the common frustration of nuisance tripping during equipment startup.
- As a Class CC fuse, the ATQR5 is highly current-limiting, reacting in less than half a cycle to clear a short circuit. By drastically reducing the "let-through" energy (I^2t), it shields delicate downstream components from the mechanical and thermal stresses of a fault, ensuring your control panels remain operational and safe.
- Despite its compact size, this fuse boasts a massive 200,000 Amp (200kA) AC interrupting rating. This allows it to safely extinguish extreme electrical arcs in high-capacity Canadian industrial facilities, providing a robust layer of protection that exceeds standard safety requirements for most branch circuits.
- The ATQR series features a unique physical rejection tip on the end cap. When used with a Class CC fuse holder, this design prevents the accidental insertion of non-current-limiting "Midget" fuses. This "fool-proof" safety feature ensures that your system always maintains its engineered level of short-circuit protection and code compliance.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Breaking Capacity
- 200 kA
- Fuse Class
- Class CC
- Length
- 1.5 in
- Connection Type
- Ferrule
- Body Material
- GMG
Amperage5 A
Frequency50/60 Hz
Fuse TypeTime Delay
Weight0.017 lb
Connection MaterialTin-Plated Copper
MountingClip
