Mersen

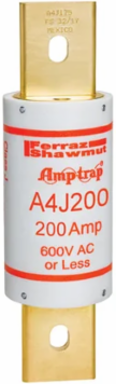

Mersen A4J200 Fuse Amp-Trap Class J 600V 200A Fast-Acting, 5.75 Inch Length

Fuse Amp-Trap Class J 600V 200A Fast-Acting, 5.75 Inch Length
  • MPN: A4J200
  • UPC: 782001960377
  • PPN: FER-A4J200

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$46.41/ EA

Description

Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

Specifications

Voltage
600 V
Interrupting Rating AC
200 kA
Fuse Type
Fast-Acting/Class J
Length
5.75 in
Material
GMG (Body/Insulating Material), Brass Alloy (Connection/Terminal Material)
Frequency
50/60 Hz
Compliance
UL Listed, CSA Certified, RoHS Compliant
Amperage200 A
Interrupting Rating DC100 kA
AC or DCAC/DC
MountingClip
Weight0.754 lb
Connection TypeBlade
