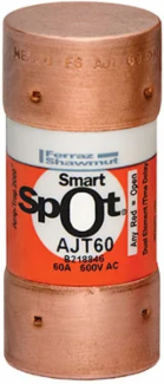

Mersen AJT60 Fuse Amp-Trap 2000® 600V 60A Time-Delay Class J with SmartSpot Indicator
- MPN: AJT60
- UPC: 782001962388
- PPN: FER-AJT60
CAD
$24.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- The AJT60 is a 60-Amp, 600V Class J fuse that provides the ultimate protection for modern industrial power systems. Its compact physical size is smaller than Class R or Class K fuses, preventing the accidental installation of lower-rated fuse types and ensuring your motor starters and branch circuits are protected by the highest standard of current-limiting technology.
- Engineered with advanced time-delay properties, the AJT60 is specifically designed to handle the high inrush currents associated with large motors and transformers. It provides at least 10 seconds of delay at 500% of its rating, effectively eliminating nuisance tripping during equipment startup while maintaining instantaneous protection against high-magnitude faults.
- The AJT60 is one of the most current-limiting fuses available, reacting in less than 1/4 of a cycle during a short circuit. By drastically reducing the peak "let-through" energy (I^2t), it significantly lowers the risk of Arc Flash hazards and protects downstream equipment like VFDs (Variable Frequency Drives) and PLC modules from catastrophic thermal damage.
- With a massive 200,000 Amp RMS interrupting rating, this fuse can be safely installed in locations with very high available fault current. It is an "all-in-one" solution that allows you to achieve a high Short Circuit Current Rating (SCCR) for your entire control panel, meeting the most stringent industrial safety codes.
- Constructed with a high-strength fiberglass body, the AJT60 is dimensionally stable in high-heat environments. Many versions include a built-in "SmartSpot" visual blown-fuse indicator, allowing maintenance teams to identify the faulted circuit at a glance without the need for manual testing, significantly reducing troubleshooting time.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 400 V DC
- Interrupting Rating
- 200 kA AC, 400 V DC
- Fuse Class
- Class J
- Connection Type
- Ferrule
- Body Material
- GMG (Fiberglass with High-grade Silica Filler)
- Weight
- 0.167 lb
- Length
- 2.38 in
Amperage60 A
Fuse TypeTime Delay
Indication SystemSmartSpot Visual Open Fuse Indicator
Connection MaterialTin-Plated Copper
MountingClip
Frequency50/60 Hz
RoHS ComplianceYes
