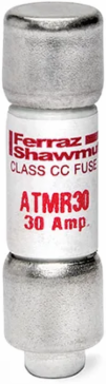

Mersen ATMR30 Amp-Trap 600V 30A Fast-Acting Class CC Fuse, 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATMR30
- UPC: 782001904845
- PPN: FER-ATMR30
CAD
$10.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Features
- Engineered with strict Class CC rejection dimensions, the ATMR30 features a physical rejection tip that prevents it from being replaced by standard, lower-rated midget fuses. This specialized design ensures your branches stay protected under the exact parameters specified by the machinery manufacturer, preventing dangerous overcurrent overrides in critical systems.
- Boasting a dual 600-volt AC and DC rating, this 30-amp fuse provides exceptionally robust protection across variable frequency drives, heavy machinery controls, and solar combiner circuits. This flexible voltage range simplifies your stocking inventory by replacing multiple single-use voltage fuses with one highly reliable, cross-compatible industrial component.
- Utilizing a highly responsive, fast-acting performance curve, the ATMR30 delivers near-instantaneous current interruption upon sensing an electrical fault. This rapid clearing action minimizes destructive thermal energy let-through, shielding downstream electronics, non-inductive loads, and control circuits from terminal damage.
- Featuring a massive 200,000-amp interrupting capacity at 600VAC, this fuse is built to withstand extreme fault currents without structural failure or casing rupture. This exceptional capability ensures full compliance with OSHA and NEC® guidelines for high available short-circuit current (SCCR) zones, maintaining absolute safety for both personnel and equipment.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Speed/Characteristic
- Fast-Acting
- Diameter
- 0.41 in
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- GMG
- Frequency
- 50/60 Hz
Amperage30 A
Fuse ClassClass CC
Length1.5 in
Weight0.017 lb
Connection/Terminal TypeFerrule
MountingClip
RoHS CompliantYes
