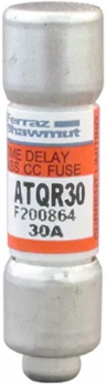

Mersen ATQR30 30A Time-Delay Class CC Fuse, 600V, Ferrule Terminal, 1.5 Inch Length
- MPN: ATQR30
- UPC: 782001904722
- PPN: FER-ATQR30
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Specifically engineered with a time-delay (slow-blow) characteristic, this fuse is optimized for inductive loads that experience significant starting surges. By allowing for temporary current spikes without tripping, it eliminates the expensive downtime caused by nuisance blowing in motor control circuits and lighting ballasts while maintaining pinpoint accuracy during sustained overloads.
- Featuring a specialized rejection tip, this Amp-Trap 2000® component is designed to fit only into Class CC fuse holders, preventing the accidental installation of lower-rated or non-current-limiting fuses. This mechanical safeguard ensures your sensitive control-side equipment remains protected by a high-performance, current-limiting device, satisfying strict NEC requirements for branch circuit protection.
- With a massive 200,000 Amp interrupting rating at 600V AC, this fuse provides industry-leading protection against catastrophic short circuits. Its current-limiting design rapidly clears electrical faults before they can damage downstream components or cause arc flash events, making it the ideal choice for heavy-duty industrial panels and facility-wide power distribution systems.
- Fully UL Listed and CSA Certified, this 30-amp industrial fuse meets the most rigorous North American safety benchmarks for overcurrent protection. Utilizing a factory-tested Mersen component ensures your electrical installation is fully code-compliant, protecting your facility’s equipment warranties and providing peace of mind for engineers and commercial contractors alike.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Voltage DC
- 300 V
- Interrupting Rating DC
- 100 kA
- Fuse Class
- Class CC
- Connection/Terminal Material
- Tin-Plated Copper
- Mounting
- Clip
- Weight
- 0.017 lb
- ROHS Compliant
- Yes
Voltage AC600 V
Interrupting Rating AC200 kA
Fuse TypeTime Delay
Length1.5 in
Connection/Terminal TypeFerrule
Body/Insulating MaterialGMG
Frequency50/60 Hz
