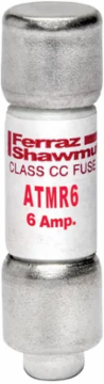

Mersen ATMR6 Amp-Trap 600V 6A Fast-Acting Class CC Fuse, 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATMR6
- UPC: 782001903909
- PPN: FER-ATMR6
CAD
$10.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Features
- Designed with a standard Class CC rejection feature, this miniature fuse securely locks into specialized blocks to prevent the accidental installation of components with lower voltage or interrupting ratings. This foolproof mechanical footprint protects your sensitive control circuits from catastrophic failure, ensuring your industrial panels maintain their precise safety specifications during routine maintenance.
- Engineered for highly responsive, fast-acting performance, this 6-amp fuse rapidly limits peak fault currents to protect delicate electronics, control transformers, and lighting circuits. By isolating short circuits instantly, it drastically reduces thermal and magnetic stress on your valuable panel hardware, minimizing costly equipment replacement and unpredictable facility downtime.
- Rated for demanding applications up to 600 volts AC and DC, this Amp-Trap® fuse delivers a massive 200,000 Amp AC (and 100kA DC) short circuit current rating (SCCR). This versatile, high-capacity overcurrent defense safely clears extreme electrical faults, making it an ideal protective solution for both complex motor control centers and industrial DC systems.
- Fully UL Listed to standard 248-4 and CSA Certified for branch circuit protection, this rugged fuse meets the most rigorous North American electrical safety requirements. Relying on this globally recognized, code-compliant component guarantees your control panel installations easily pass local inspections while actively safeguarding personnel from dangerous arc flash hazards.
Documentation & Downloads
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class CC
- Mounting
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 0.017 lb
Rated voltage DC UL600 V
Ampere Rating6 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeFerrule
Length1.5 in
