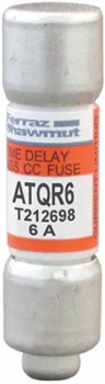

Mersen ATQR6 Fuse Amp-Trap 2000® Time-Delay Class CC 6A 600V, 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATQR6
- UPC: 782001906603
- PPN: FER-ATQR6
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Engineered specifically to handle the massive inrush currents generated by heavy-duty control transformers, this Amp-Trap 2000® fuse features a highly specialized time-delay element. This robust design actively eliminates frustrating nuisance tripping during routine equipment boot-ups, ensuring your critical automation panels and solenoid circuits stay online without compromising on essential overload protection.
- Boasting a massive 200,000 Amp AC short circuit current rating (SCCR), this highly efficient current-limiting fuse stops dangerous fault currents in their tracks before they reach destructive levels. By isolating electrical faults instantly, it protects your expensive control boards, motor starters, and sensitive electronics from catastrophic thermal and magnetic damage, significantly reducing facility downtime.
- Featuring a standard Class CC 13/32" x 1-1/2" dimension with a rejection-style tip, this 6-amp fuse physically prevents the accidental and dangerous insertion of lower-rated, non-current-limiting midget fuses into the block. This built-in mechanical safeguard guarantees your industrial electrical infrastructure maintains its exact design specifications, giving facility managers absolute peace of mind during routine repairs.
- Safely rated for up to 600 volts AC and 300 volts DC, this highly versatile fuse provides uncompromising overcurrent defense across a wide variety of commercial manufacturing applications. Fully UL Listed (Standard 248-4) and CSA Certified, it guarantees your motor control centers (MCC) and commercial HVAC equipment easily pass strict local safety inspections while keeping your operation perfectly code-compliant.
Documentation & Downloads
Specifications
Additional
- Amperage
- 6 A
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Frequency
- 50/60 Hz
- Length
- 1.5 in
- Weight
- 0.017 lb
- Mounting
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
Voltage600 V AC / 300 V DC
Speed/CharacteristicTime Delay
AC or DCAC/DC
Fuse ClassClass CC
Connection/Terminal TypeFerrule
Body/Insulating MaterialGMG (Fiberglass with high-grade silica filler)
RoHS CompliantYes
