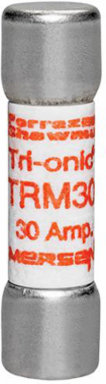

Mersen TRM30 Tri-Onic 250V 30A Time-Delay Midget Fuse, 1-1/2 Inch x 13/32 Inch Dimensions
- MPN: TRM30
- UPC: 782001746650
- PPN: FER-TRM30
CAD
$5.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Specifications
Key Specifications
| Rated voltage AC UL | 250 V |
|---|---|
| Ampere Rating | 30 A |
| AC or DC | AC |
| Speed/Characteristic | Time Delay |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Type | Ferrule |
| Length | 1.5 in |
| Frequency (Hz) | 50/60 Hz |
|---|---|
| ROHS Compliant | Yes |
| Fuse Class | Midget |
| Mounting | Clip |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | GMG |
| Weight | 0.013 lb |
