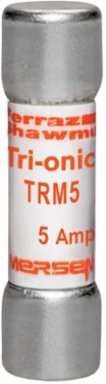

Mersen TRM5 Tri-Onic® Midget Fuse 250V 5A Time-Delay 1-1/2 x 13/32 Inch
- MPN: TRM5
- UPC: 782001743451
- PPN: FER-TRM5
CAD
$5.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Features
- Engineered specifically for circuits with high inrush currents, this 5-amp midget fuse safely absorbs harmless, temporary power surges from small motors and control transformers powering up. This robust slow-blow characteristic completely eliminates the frustrating downtime associated with nuisance trips, keeping your machinery running while still providing highly reliable overcurrent protection against sustained, damaging electrical faults.
- Measuring a standard 13/32" x 1-1/2" (10x38mm), this cylindrical glass-melamine fuse drops perfectly into any standard non-rejection midget fuse block or inline holder. The durable ferrule end-caps ensure a secure, tight-fitting electrical connection, making it an ideal drop-in replacement for tight commercial HVAC units and high-density industrial control enclosures.
- Safely rated to handle 5 amps at up to 250 volts AC, this supplemental fuse is optimized for safeguarding low-voltage industrial control circuits, lighting ballasts, and solenoids. By rapidly isolating overloaded sub-circuits, it actively prevents cascading electrical failures and protects your expensive relays and contactors from costly thermal damage.
- Fully UL Listed to standard 248-14 and CSA Certified, this component easily meets the strict safety regulations required by North American electrical inspectors. Delivering a dependable 10,000 Amp short circuit interrupting rating (IR), it safely clears moderate fault currents without shattering, ensuring your repair work remains fully code-compliant and your personnel stay protected.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V AC
- Speed/Characteristic
- Time Delay, 12 seconds at 200%
- Frequency
- 50/60 Hz
- Length
- 1.5 in
- Weight
- 0.013 lb
- Connection/Terminal Type
- Ferrule
- Mounting
- Clip
- Compliance
- UL Listed, CSA Certified, RoHS Compliant
Amperage5 A
Interrupting Rating10 kA
AC or DCAC
Diameter13/32 in
Body/Insulating MaterialGMG
Connection/Terminal MaterialTin-Plated Copper
Fuse ClassMidget
