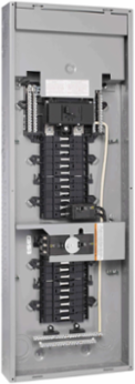

Square D QOGP3P604436125P Generator panel, QO, 1 phase, 40 spaces, 80 circuits, 125A main breaker, PoN, NEMA1, cover with door, CSA
Square D QOGP3P604436125P Generator panel, QO, 1 phase, 40 spaces, 80 circuits, 125A main breaker, PoN, NEMA1, cover with door, CSA
- MPN: QOGP3P604436125P
- UPC: 785901667308
- PPN: SCH-QOGP3P604436125P
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1248.18/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 18 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO All-in -one Generator Panel contains a main breaker and is rated at 125 A and 1 phase. This system provides 4 spaces in a NEMA 1 enclosure and it is Plug-on neutral load center. CQO load centers are CSA certified.
Specifications
Complementary
- Height
- 1000 mm
- Tightening Torque
- cover 20 lb.in
- Width
- 362 mm
- Number Of Circuits
- 80
- Loadcentre Type
- PoN Convertible Mains (breaker)
- Network Number Of Phases
- 1 phase
Short-Circuit Current10 kA
[In] Rated Current125 A || 60 A
Depth95 mm
Number Of Spaces40
Device Compositiongrounding bar (ordered separately)
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor
Specifications
- Range Of Product
- QO
Product Or Component Typepanel
