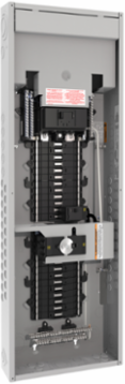

Square D QOGP3P604436200P Generator panel, QO, 1 phase, 40 spaces, 80 circuits, 200A main breaker, PoN, NEMA1, cover with door, CSA
Square D QOGP3P604436200P Generator panel, QO, 1 phase, 40 spaces, 80 circuits, 200A main breaker, PoN, NEMA1, cover with door, CSA
- MPN: QOGP3P604436200P
- UPC: 785901667926
- PPN: SCH-QOGP3P604436200P
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1180.74/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 18 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO All-in -one Generator Panel contains a main breaker and is rated at 2 A and 1 phase. This system provides 4 spaces in a NEMA 1 enclosure and it is Plug-on neutral load center. CQO load centers are CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Complementary
- Height
- 1000 mm
- Tightening Torque
- cover 20 lb.in
- Width
- 362 mm
- Number Of Circuits
- 80
- Loadcentre Type
- PoN Convertible Mains (breaker)
- Network Number Of Phases
- 1 phase
Short-Circuit Current10 kA
[In] Rated Current200 A || 60 A
Depth95 mm
Number Of Spaces40
Device Compositiongrounding bar (ordered separately)
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor
Specifications
- Range Of Product
- QO
Product Or Component Typepanel
