QO Generator Panel 1 Phase 60A Main Breaker 36 Circuits NEMA 1
QO Generator Panel 1 Phase 60A Main Breaker 36 Circuits NEMA 1
Square D

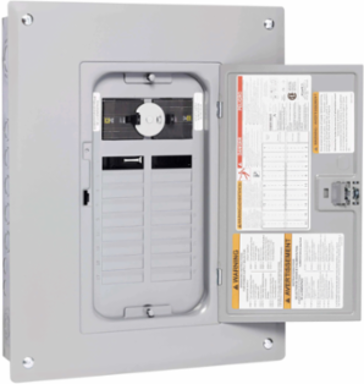

Square D QOGP3P6036P QO Generator Panel 1 Phase 60A Main Breaker 36 Circuits NEMA 1

  • MPN: QOGP3P6036P
  • UPC: 785901667018
  • PPN: SCH-QOGP3P6036P

CAD

$584.60

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside. QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Generator Panel contains a main breaker and is rated at 60 A and 1 phase. This system provides 18 spaces in a NEMA 1 enclosure and it is Plug-on neutral load center. CQO load centers are CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Depth95 mm

Complementary Attributes

Line Rated Current
60 A

Important Information Attributes

Persona Type Ids
EU, LC
Carbon Footprint Of The Distribution Phase [A4]
3.1586057143, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0073729264, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
0.1 kg CO2 eq., 0.087341
Local Publishable Date
2025-11-13
Stocking Flag
N
Weee Product Category
4
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2436
China Rohs In Scope
No
Without Single Use Plastic
No
Tier Id
1
Function Option Id
STANDARD
Market Segmentation Id
RESIDENTIAL
Product Kit Identifier
N
Energy Efficiency Optimized
False
Number Of Circuits
36
Product Availability
Stock - Normally stocked in distribution facility
Range Of Product
QO
Software Version
EIME v5.9.4
Tightening Torque
Cover 20 lb.in
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Lexington
Energy Model - Use [B6]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential In %
88
Width Nominal
362 mm
[Ue] Rated Operational Voltage
120/240 V AC
Nbr. Of Units In Pkg.
1
Take-back
No
Air Pollution (M3) Operational Energy Use [B6]
7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
1.1052
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
1.1052
Customs Code
8537109150
Persona Type NamesEnd User, Contractor
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 0.9796968067
Carbon Footprint Of The Manufacturing Phase [A1 To A3]67 kg CO2 eq., 67.4279529412
Local Data StatusPublishable
Return IndicatorY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Device Compositiongrounding bar (ordered separately)
Load Center TypePoN Convertible Mains (breaker)
Phase1 phase
Product Or Component Typepanel
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint72 kg CO2 eq.
Pep CodeENVPEP2212001EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal455 mm
Certificate AgencyUL Listed
Short-circuit Current10 kA
Package Weight(Lbs)9.344 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Operational Energy Use [B6]4.3059

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back
No
Mercury Free
Yes
Environmental Disclosure
ENVPEP2212001EN
Nema Degree Of Protection
NEMA 1 indoor enclosure
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP2212001EN
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint71.6609693886
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29

General Attributes

Phase
1 phase
Range Of Product
QO
Product Or Component Typepanel
