Square D EIK2 Interlock, safety switch, 2 x NO, 2 x NC contact, general duty series F 100A to 200A rated or heavy duty series F5/F6/F7

Interlock, safety switch, 2 x NO, 2 x NC contact, general duty series F 100A to 200A rated or heavy duty series F5/F6/F7 - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/80afd43db55e1b60ed9ebf9c92c2e3d5b0eb1123-medium.png

Interlock, safety switch, 2 x NO, 2 x NC contact, general duty series F 100A to 200A rated or heavy duty series F5/F6/F7

Square D EIK2 Interlock, safety switch, 2 x NO, 2 x NC contact, general duty series F 100A to 200A rated or heavy duty series F5/F6/F7

MPN: EIK2
UPC: 785901751311
PPN: SCH-EIK2

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$265.77/ EA

Qty:

Loading add to cart quantity...

Description

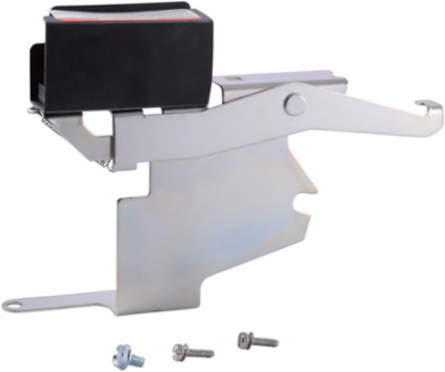

The Square D™ by Schneider Electric brand General Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. General Duty Safety Switch are designed for commercial, institutional, industrial & manufacturing facilities. Electrical interlocks for Series F,100–200A, general duty safety switches, are available in kit form for field installation. Each kit contains instructions for proper field mounting. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Switches with electrical interlocks installed are UL Listed. For factory-installed electrical interlocks add EI (for one contact) or EI2 (for two contacts) suffix to catalog number. This Electric Interlock Kit for Safety Switches are for safety switchwith aUL listed certification and a switch function of DPDT

Specifications

Product Or Component Type: interlock

Product Destinationsafety switch

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1304031

Eu Rohs Directive: Compliant with Exemptions

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Product Certifications: UL listed

Switch Function: DPDT

Depth: 1.48 in

Height4.346 in

Width7.263 in
