Schneider Electric XB4BL73415 Harmony XB4 Double-Headed Push Button 22mm, 1NO+1NC, IP67
- MPN: XB4BL73415
- PPN: SCH-XB4BL73415
CAD
$80.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

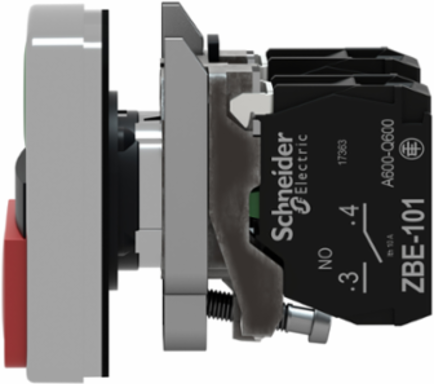

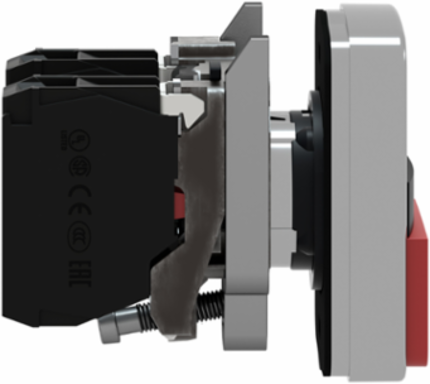

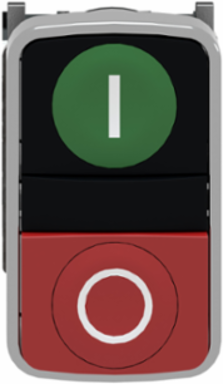

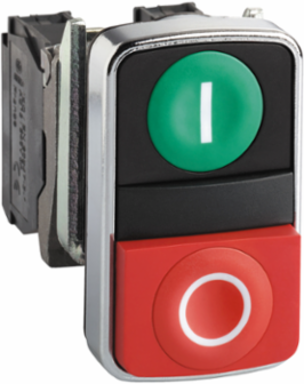

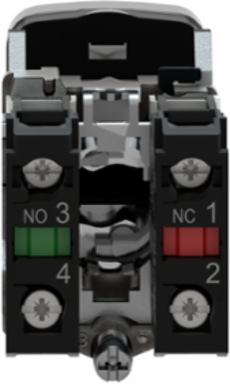

This Harmony XB4 double-headed modular push button has 1 red and 1 green button, operates with a spring return mechanism. It has a metal bezel. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- spring return
- Product Or Component Type
- double-headed push-button
- Fixing Collar Material
- zamak
- Head Type
- standard
- Contacts Type And Composition
- 1 NO + 1 NC
- Contact Operation
- slow-break
Mounting Diameter22 mm
Operators Descriptiongreen ''I'' - red ''O''
Shape Of Signaling Unit Headrectangular
Operator Profile1 flush - 1 projecting push-buttons
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Bezel Materialchromium plated metal
Device Short NameXB4
Complementary
- Contacts Usage
- standard contacts
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Net Weight
- 0.116 kg
- Device Presentation
- complete product
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Electrical Durability
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Mechanical Durability
- 1000000 cycles
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
Operating Force3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Colour Of Markingblack marking when white caps || white marking when green, red or black caps
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Operator Profilegreen flush, I white) || red projecting, O white)
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Environment
- Product Certifications
- BV || GL || LROS (Lloyds register of shipping) || DNV || CSA || UL listed
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsUL 508 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass I IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
