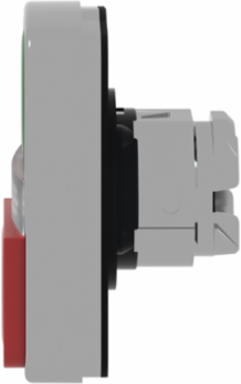

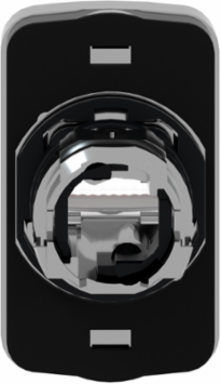

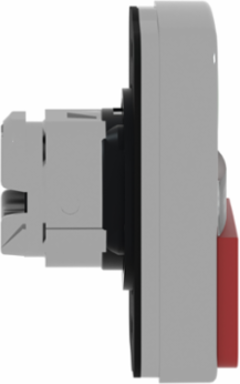

Schneider Electric ZB4BW7L3740 Harmony XB4 Illuminated Double Head Push Button, 22mm, IP66, Spring Return
Schneider Electric ZB4BW7L3740 Harmony XB4 Illuminated Double Head Push Button, 22mm, IP66, Spring Return
- MPN: ZB4BW7L3740
- PPN: SCH-ZB4BW7L3740
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$62.18/ EA
Description

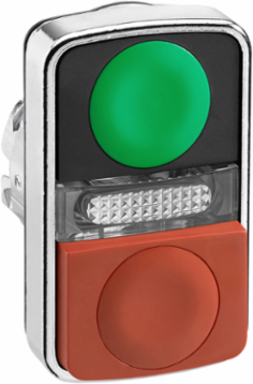

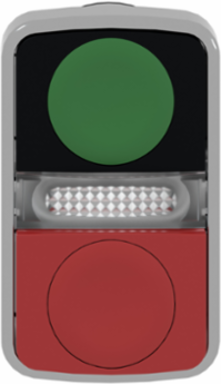

This Harmony XB4, illuminated double head has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Specifications
Environment
- Product Certifications
- DNV || BV || CSA || GL || UL listed || LROS (Lloyds register of shipping)
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K || IP69 IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsIEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass I IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Net Weight
- 0.056 kg
- Device Presentation
- basic sub-assemblies
- Operator Profile
- green flush, unmarked || red projecting, unmarked
- Cad Overall Width
- 30 mm
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
Cad Overall Height50 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Mechanical Durability1000000 cycles
Cad Overall Depth30 mm
Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- spring return
- Product Or Component Type
- head for illuminated double-headed push-button
- Operator Profile
- 1 flush - 1 projecting push-buttons - 1 central pilot light
- Sale Per Indivisible Quantity
- 1
- Product Compatibility
- integral LED
Mounting Diameter22 mm
Operators Descriptiongreen unmarked - red unmarked
Shape Of Signaling Unit Headrectangular
Head Typestandard
Bezel Materialchromium plated metal
Device Short NameZB4
