Burndy YGLR29C34 Copper Compression Connector, 3/4 Inch Ground Rod, 2 AWG to 250 kcmil, UL Listed
- MPN: YGLR29C34
- UPC: 781810220825
- PPN: BUR-279166
CAD
$287.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

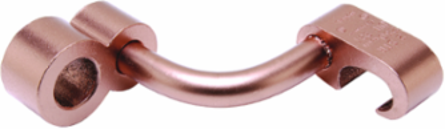

Copper Compression Connector, Ground Rod to Grid, 2 AWG (Str) to 250 kcmil, 3/4" Ground Rod.
Documentation & Downloads
Specifications
Additional
- Connector Type
- Tap
- Ground Rod Size
- 3/4 in

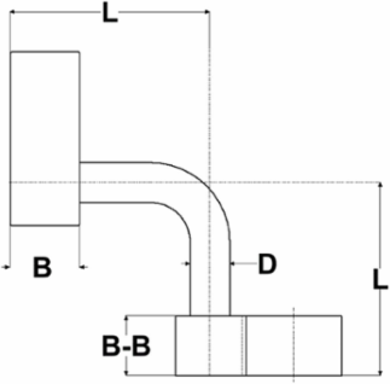

- Dimensions - Length BB
- 0.88 in
- Dimensions - D
- 0.50 in
- Number of Crimps Required
- 1
- Plating Type
- Unplated
- Standards
- UL467, IEEE 837, IEEE 837 2014 Qualified
- RoHS Compliance
- CM
- Conductor - Rebar Tap
- 5;6
- Sub Brand
- GRIDLOK
Conductor Size Range2 AWG - 250 kcmil
Dimensions - Length Overall2.63 in
Dimensions - B Length0.75 in
Dimensions - L Length Overall67 mm
MaterialCopper
Oxide Inhibitor TypePenetrox E
CertificationUL Listed Direct Burial, CSA Approved, ETL No, cULus No, UL Recognized No
Die Index997 (Element A), 1011 (Element B)
Trade NameGRIDLOKTM
