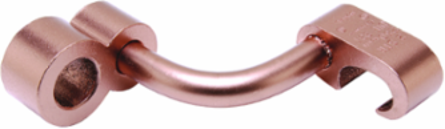

Burndy YGLR34C100 Ground Rod Connector, 1 Inch 250-500 kcmil Copper, UL Listed
- MPN: YGLR34C100
- UPC: 781810220863
- PPN: BUR-279163
CAD
$327.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ground Rod Connector, 250 kcmil thru 500 kcmil Commercial Cu , 248.8 kcmil thru 498.8 kcmil Cu Weld, 1" Ground Rod , 6,7 Rebar
Documentation & Downloads
Specifications

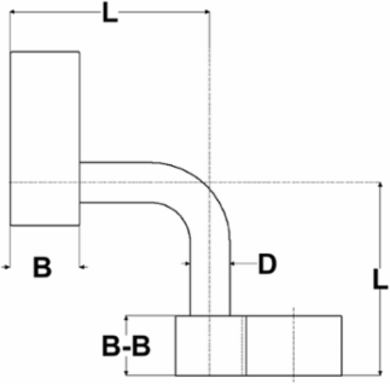

Dimensions
- Dimension - B Length fraction
- 3/4 in
- Dimension - D inch
- 0.50 in
- Dimension - L Length Overall mm
- 67 mm
- Dimension - Length Overall inch
- 2.63 in
Dimension - B Length inch0.75 in
Dimension - Ground Rod Size1
Dimension - Length BB inch0.88 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Listed Direct Burial
- Yes
- Certification - cULus
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - UL RecognizedNo
Industry Standard(s)Direct Burial
UL ListedYes
Conductor Related
- Conductor - Copper Str Size A
- 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Rebar Tap
- 6;7
- Conductor - Rod Size B Range
- 1 in
Conductor - Copper Str Size A Range250 kcmil-500 kcmil
Conductor - Rod Size B1 in
General
- Connector Type
- Tap
- Die Index - Element A
- 1011
- Material
- Copper
- Physical Attribute - Number of Crimps Required
- 2
- Plating Type
- Unplated
- Trade Name
- GRIDLOK™
- UPC
- 781810220863
Die Index1011
Die Index - Element B1011
Oxide Inhibitor TypePenetrox E
PlatedN
Prefilled Oxide InhibitorY
TypeTaps
UPC 12 Digit7818102208633
Logistics
- Minimum Pack Quantity
- 6
