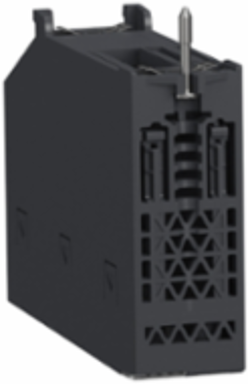

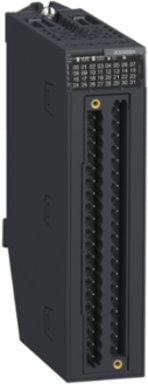

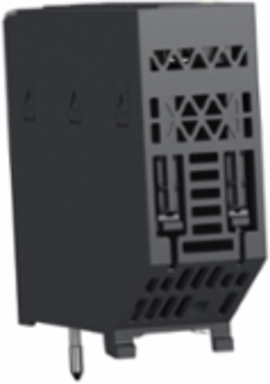

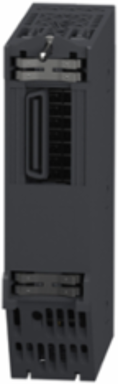

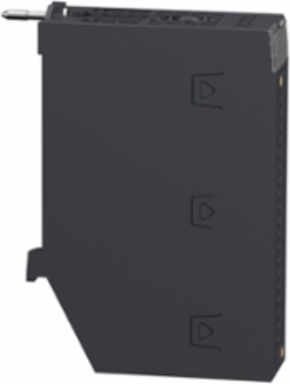

Schneider Electric BMXDDO3202H Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC, for severe environments
- MPN: BMXDDO3202H
- PPN: SCH-BMXDDO3202H
CAD
$1516.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product has 32 isolated outputs and it is supplied with 12/24V DC (positive). This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This discrete module has a weight of 0.110kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Complementary Attributes
- Maximum Voltage Drop
- <1.2 V at state 1, <1.2 V at state 1<1.2 V at state 1, <1.2 V at state 1
Maximum Current Per Module17.6 A
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Dielectric Strength
- 1780 V AC 50/60 Hz 1 minute, output/ground, 1 minute, output/internal logic
- Insulation Resistance
- > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
- Protection Type
- external fuse reverse polarity protection, short-circuit protection, overload protection, overvoltage protection
- Carbon Footprint Of The Distribution Phase [A4]
- 0.04053766666666667, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3 kg CO2 eq., 0.26363433333333336
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 14 kg CO2 eq., 13.932894736842107
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2402023EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2242
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Per Channel
- 0.55 A
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- No
- Software Version
- v5.9.4
- Switching Frequency
- 0.5/LI² Hz
- Pep Code
- ENVPEP2402023EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 219.139
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 44.85
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2
Load Impedance Ohmic> 54.54 Ohm, > 54.54 Ohm
Voltage Detection Threshold< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.36382633333333336, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.520166666666668
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Mtbf Reliability833000 H
Product Or Component Typediscrete output module
Range Of ProductModicon X80
Reverse Polarity Protectionreverse mounted diode
Sustainable PackagingYes
Total Lifecycle Carbon Footprint32 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh26.0172
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Package Weight(Lbs)313.000 g
Warranty (In Months)18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]44.85
Customs Code8538908180
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2402023EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint32.121059736842106
Environmental DisclosureENVPEP2402023EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- discrete output module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Output Attributes
- Discrete Output Logic
- positive
- Response Time On Output
- 0.3 ms
Paralleling Of Outputsyes : 3 maximum
